Vehicle S/W Management

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13505391Courtesy of KIA MOTORS AMERICA, INC.

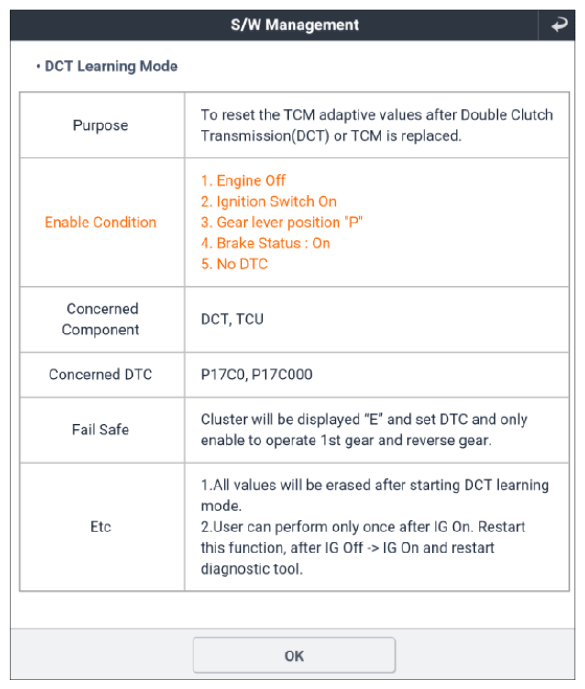

G13505392Courtesy of KIA MOTORS AMERICA, INC.

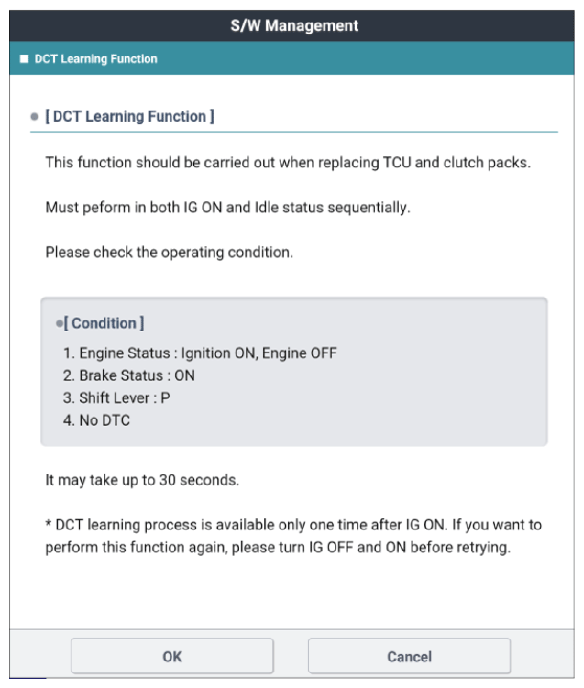

G13505393Courtesy of KIA MOTORS AMERICA, INC.

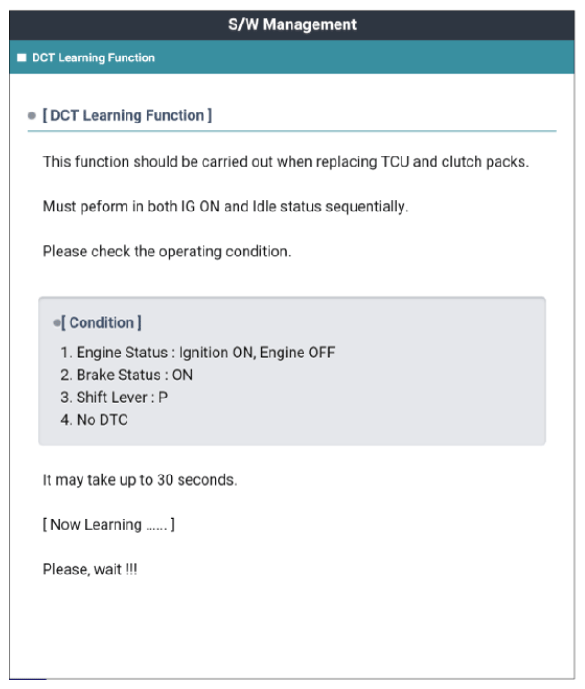

G13505394Courtesy of KIA MOTORS AMERICA, INC.

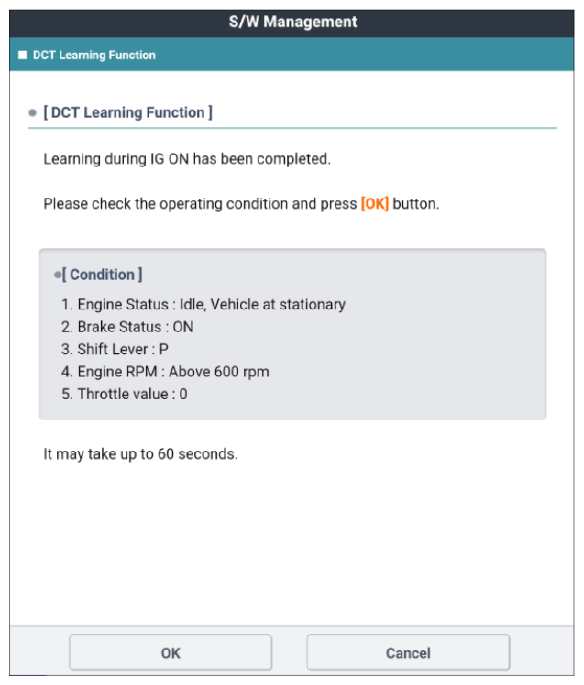

G13505395Courtesy of KIA MOTORS AMERICA, INC.

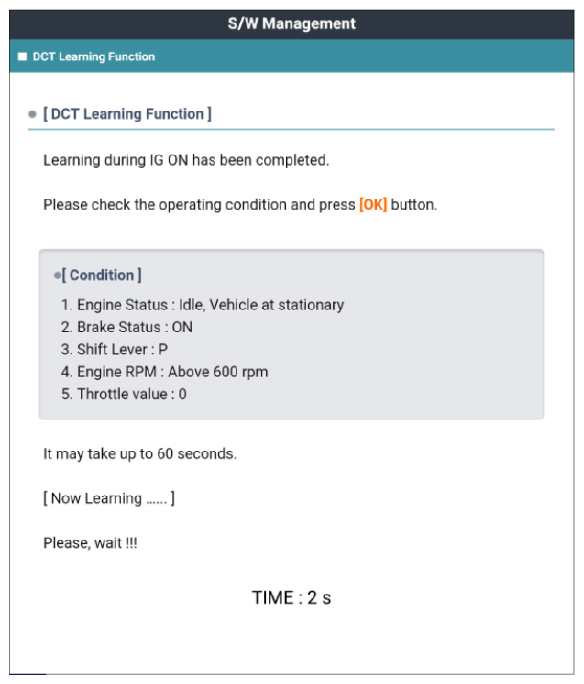

G13505396Courtesy of KIA MOTORS AMERICA, INC.
G13505397Courtesy of KIA MOTORS AMERICA, INC.
