Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

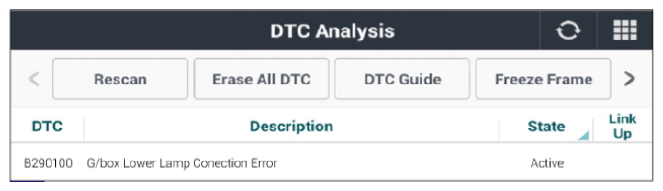

Fig.1 |
Active Fault
- Go to "SYSTEM INSPECTION " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in the sensor's and/or mood lamp unit connector or was repaired and mood lamp unit memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
