Repair Procedures: Removal

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

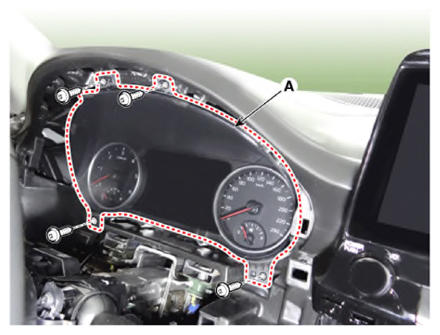

  3. Remove the instrument cluster (A) after loosening the mounting screws.
    G13486708Courtesy of KIA MOTORS AMERICA, INC.

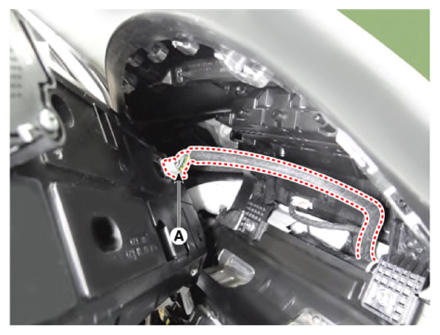

  4. Disconnect the instrument cluster connectors (A).
    G13486709Courtesy of KIA MOTORS AMERICA, INC.
