Removal And Installation

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the front pillar trim.

   (Refer to Interior Trim - "FRONT PILLAR TRIM ")

2. Remove the crash pad center lower panel.

   (Refer to Crash Pad - "CRASH PAD CENTER LOWER PANEL ")

3. Remove the steering wheel.

   (Refer to Steering System - "STEERING WHEEL ")

4. Remove the steering column shroud lower panel.

   (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

5. Remove the instrument cluster.

   (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

6. Remove the head up display unit.

   (Refer to Body Electrical System - "HEAD UP DISPLAY (HUD) UNIT ")

7. Remove the center speaker.

   (Refer to Body Electrical System - "SPEAKER ")

8. Remove the audio/AVN head unit.

   (Refer to Body Electrical System - "AUDIO/AVN HEAD UNIT ")

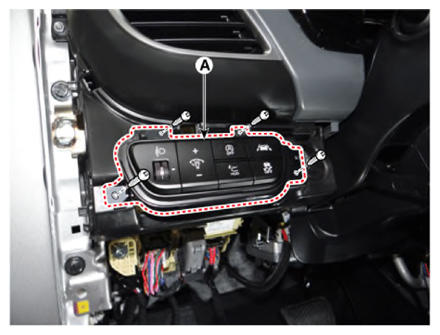

9. After loosening the mounting screws, remove the crash pad switch assembly (A).

   Courtesy of KIA MOTORS AMERICA, INC.

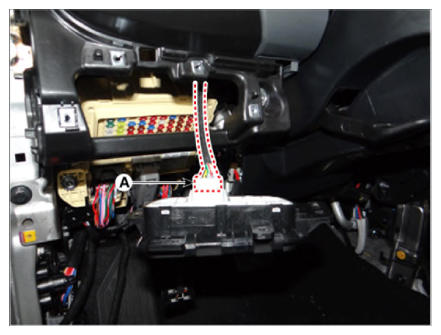

10. Disconnect the connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

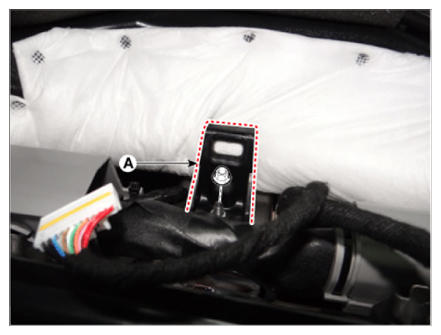

11. After loosening the mounting nut, remove the head up display bracket (A).

    Courtesy of KIA MOTORS AMERICA, INC.

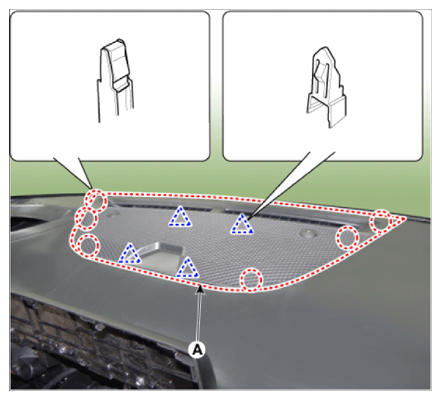

12. Using a screwdriver or remover, remove the center speaker grille (A).

    Courtesy of KIA MOTORS AMERICA, INC.

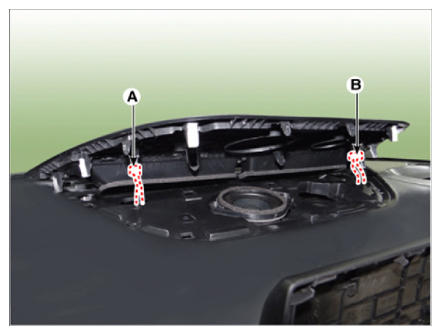

13. Disconnect the auto light sensor connector (A) and photo sensor connector (B).

    Courtesy of KIA MOTORS AMERICA, INC.

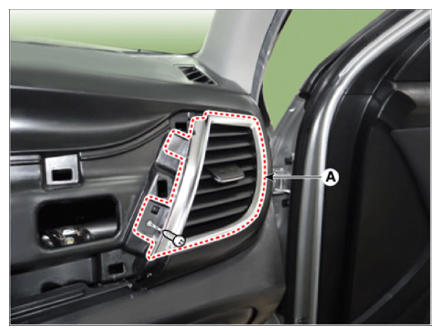

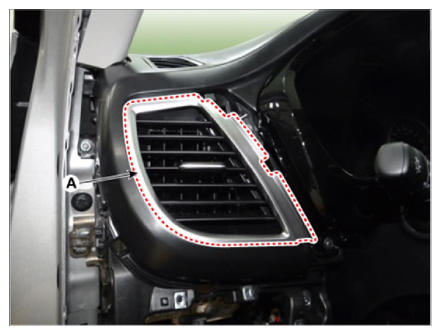

14. Using a screwdriver or remover, remove the side air vent duct assembly (A).

    [LH]

    Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    Courtesy of KIA MOTORS AMERICA, INC.

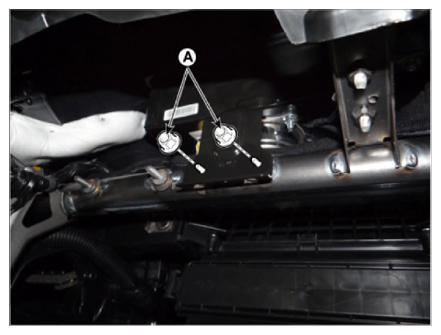

15. Loosen the mounting nuts (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf-m, 5.8 - 8.7 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

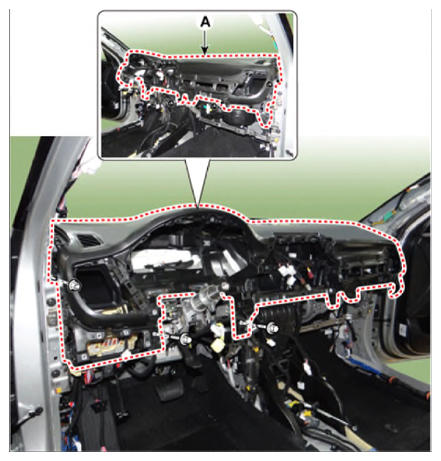

16. Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).

    Tightening torque:

    16.7 - 23.5 N.m (1.7 - 2.4 Kgf.m, 12.3 - 23.1 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

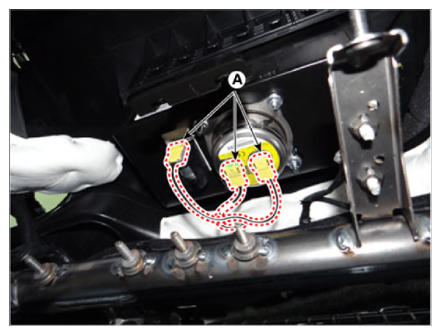

17. Disconnect the passenger's airbag connectors (A).

    Courtesy of KIA MOTORS AMERICA, INC.

18. To install, reinstall in reverse order of removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
