Removal And Installation

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
• Take care not to bend or scratch the trim and panels.

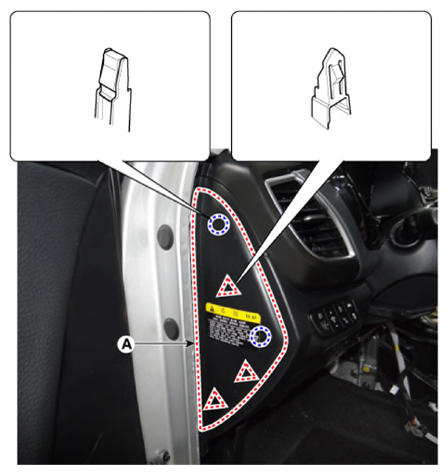

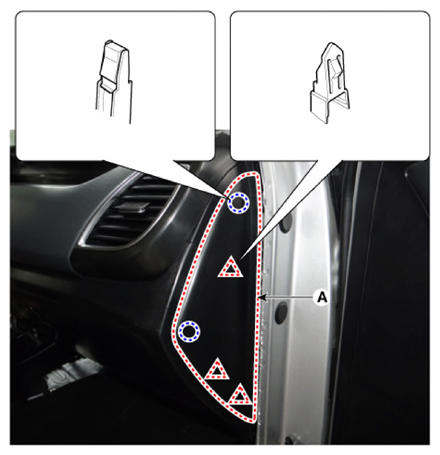

1. Using a screwdriver or remover, remove the crash pad side cover (A).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

2. To install, reinstall in reverse order of removal procedure.

   Information

   Replace any damaged clips (or pin-type retainers).
