Removal And Installation

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")
Remove the heater & A/C control unit.
(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROL UNIT (MANUAL) ")

(Refer to Heating, Ventilation, Air Conditioning - "HEATER & CONTROL UNIT (FATC) "

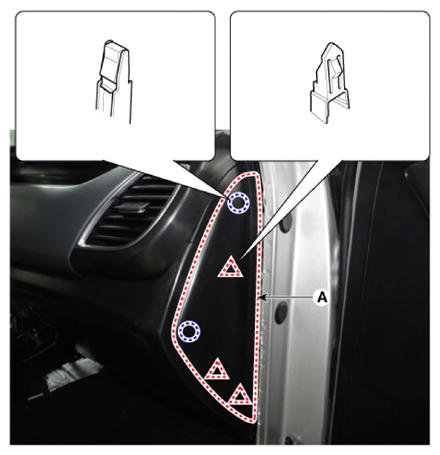

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

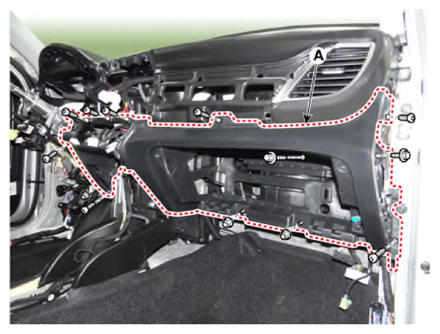

After loosening the mounting nuts, screws and bolts, remove the crash pad center lower panel (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
