Removal And Installation

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/recycling/charging station.
3. When the engine is cool, drain the engine coolant from the radiator.

   G 1.6 T-GDI GAMMA  (Refer to Engine Mechanical System - "COOLANT ")

   G 2.0 MPI NU  (Refer to Engine Mechanical System - "COOLANT ")

4. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

5. Remove both sides of front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

6. Remove the main crash pad assembly.

   (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

7. Disconnect the steering column connectors.

   (Refer to "MDPS ASSEMBLY ").

8. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

   (Refer to "MDPS ASSEMBLY ").

9. Remove the wiper motor & linkage assembly.

   (Refer to Body Electrical System - "WIPER MOTOR ")

10. Remove the bolts and the expansion valve (A) from the evaporator core.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf-m, 6.5 - 10.1 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

    NOTE:

    • Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
    • When installing, replace with a new O-ring.

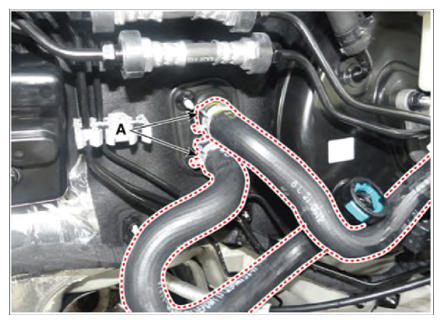

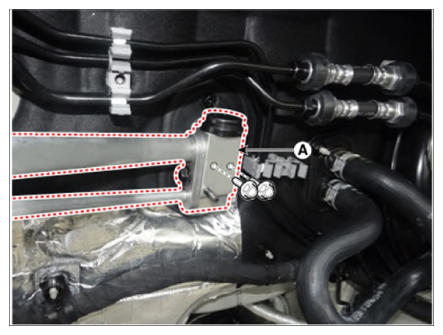

11. Disconnect the heater hoses (A) from the heater unit.

    Courtesy of KIA MOTORS AMERICA, INC.

    CAUTION: Engine coolant will run out when the hoses are disconnected; drain it into a clean drip pan. Be sure not to let coolant spill on electrical parts or painted surfaces. If any coolant spills, rinse it off immediately.
12. Loosen the engine room cowl cross bar assembly mounting bolts.

    Tightening torque:

    21.6 - 29.4 N.m (2.2 - 3.0 Kgf.m, 15.9 - 21.7 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

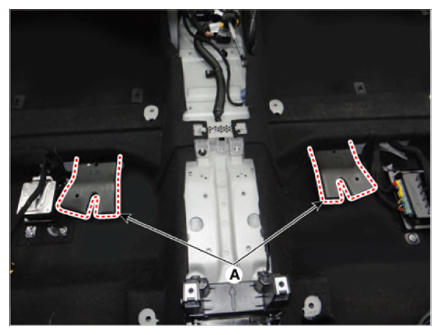

13. Remove the rear air duct (A).

    Courtesy of KIA MOTORS AMERICA, INC.

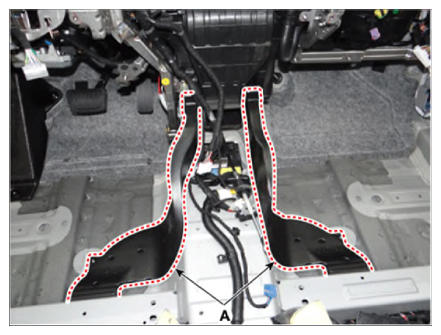

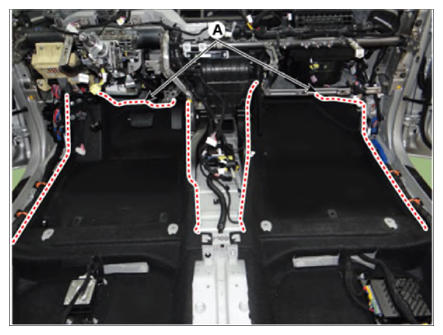

14. Separate the floor carpet (A) to obtain space for removing the rear heating duct.

    Courtesy of KIA MOTORS AMERICA, INC.

15. Remove the front air duct (A).

    Courtesy of KIA MOTORS AMERICA, INC.

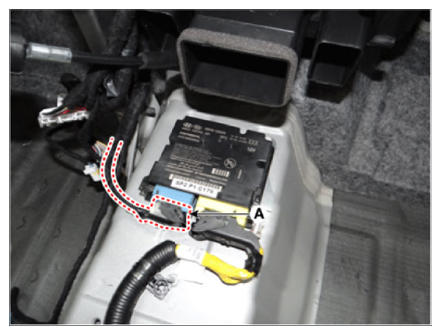

16. Disconnect the airbag control module (SRSCM) connector (A) including airbag control ground mounting.

    Courtesy of KIA MOTORS AMERICA, INC.

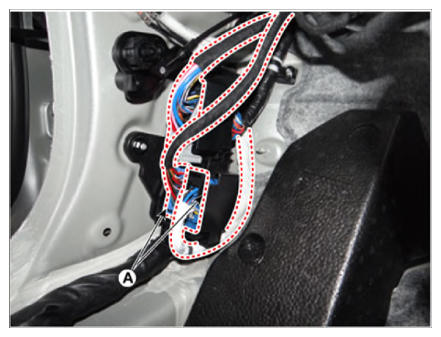

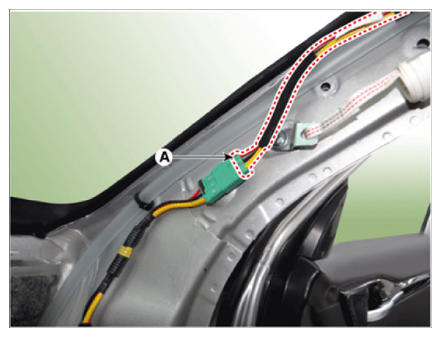

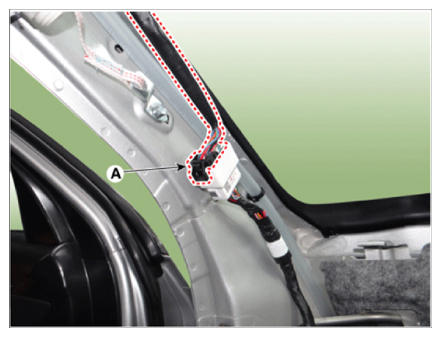

17. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    [LH]

    Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    Courtesy of KIA MOTORS AMERICA, INC.

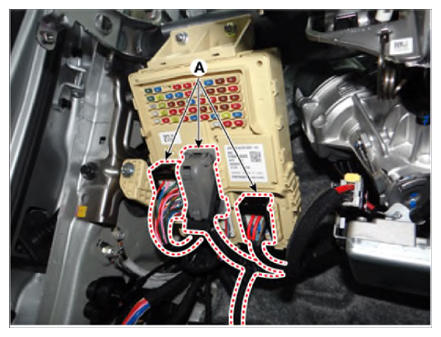

18. Disconnect the passenger compartment junction box connectors (A).

    Courtesy of KIA MOTORS AMERICA, INC.

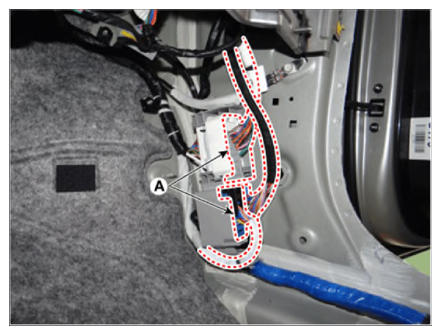

19. Disconnect the multi box connectors (A).

    [Driver's]

    Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger's]

    Courtesy of KIA MOTORS AMERICA, INC.

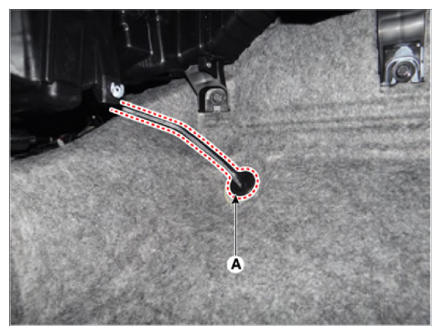

20. Remove the drain hose (A).

    Courtesy of KIA MOTORS AMERICA, INC.

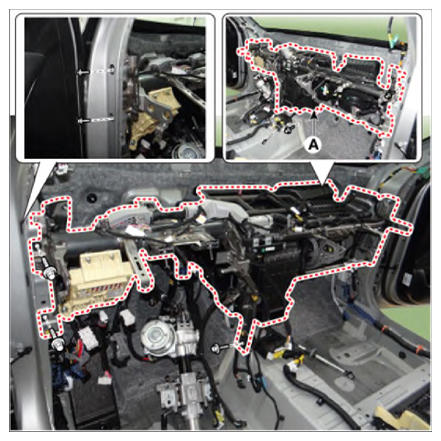

21. After loosening the bolts, remove the cowl cross bar and heater & blower unit assembly (A) together.

    Tightening torque:

    16.7 - 23.5 N.m (1.7 - 2.4 Kgf.m, 12.3 - 17.4 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

22. Disconnect the connector, then remove the IBU (A) after loosening the nuts.

    Courtesy of KIA MOTORS AMERICA, INC.

23. Disconnect the heater & blower unit connectors.

    [Driver's side]

    1. Separate the mode control actuator (A) and remove the wiring mounting clips.

       Courtesy of KIA MOTORS AMERICA, INC.

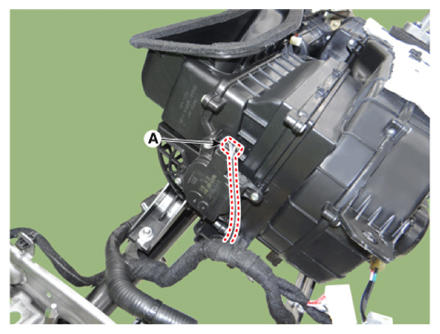

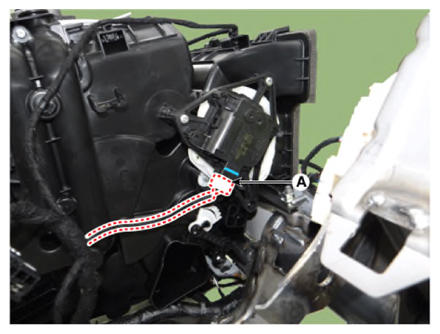

    2. Separate the evaporator temperature sensor (A) and remove the wiring mounting clips.

       Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger's side]

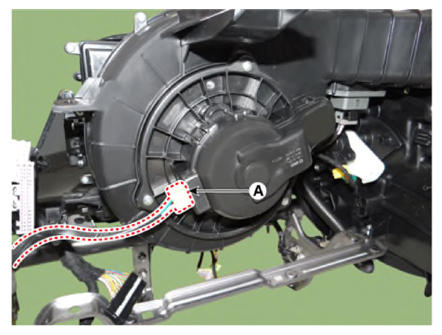

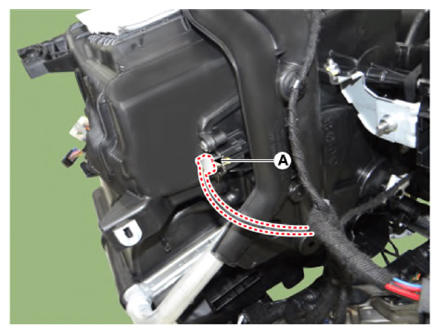

    1. Separate the blower motor connector (A) and remove the wiring mounting clip.

       Courtesy of KIA MOTORS AMERICA, INC.

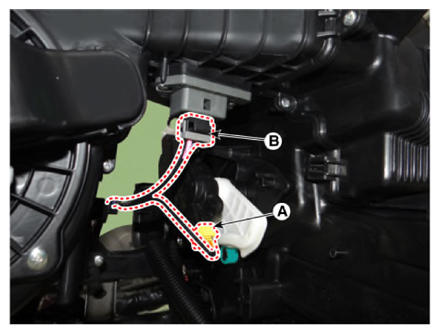

    2. Separate the power mosfet connector (B) and temperature control actuator (A), remove the wiring mounting clips.

       Courtesy of KIA MOTORS AMERICA, INC.

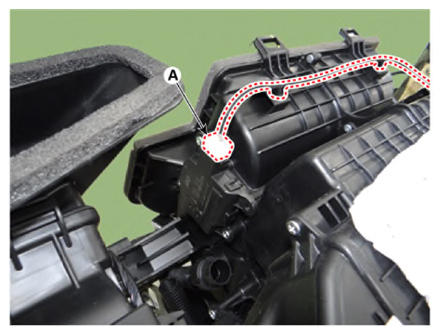

    3. Separate the intake actuator connector (A) and remove the wiring mounting clip.

       Courtesy of KIA MOTORS AMERICA, INC.

    4. Separate the auto defogging actuator (A) and remove the wiring mounting clips.

       Courtesy of KIA MOTORS AMERICA, INC.

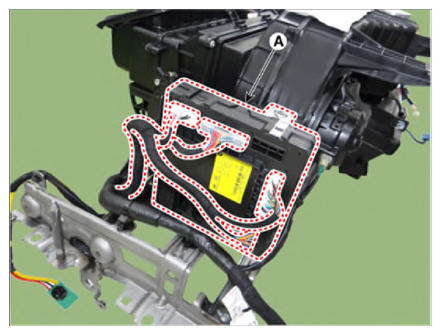

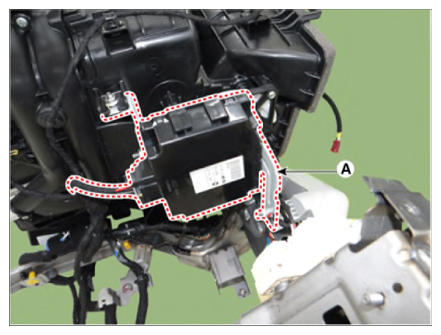

24. Disconnect the connectors then remove the IBU (A) after loosening the bolt and nuts.

    Courtesy of KIA MOTORS AMERICA, INC.

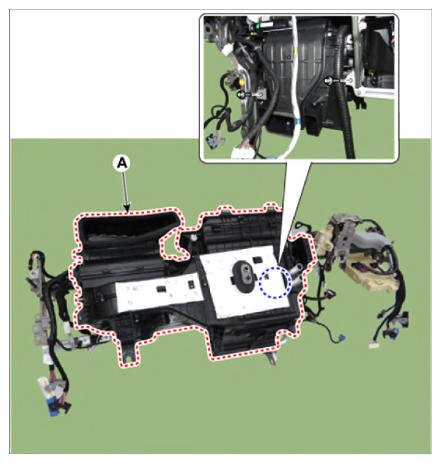

25. Loosen the mounting nuts and bolts, remove the heater & blower unit (A) from the cowl cross bar.

    Courtesy of KIA MOTORS AMERICA, INC.

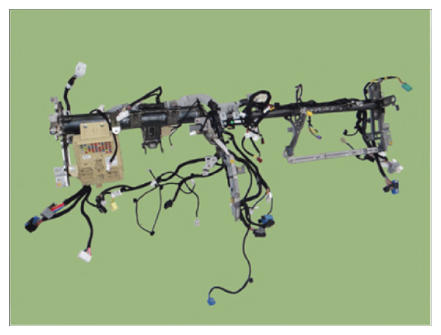

26. Remove the main wiring harness from the cowl cross bar.

    Courtesy of KIA MOTORS AMERICA, INC.

27. To install, reinstall in reverse order of removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
