Removal And Installation

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Take care not to bend or scratch the trim and panels.

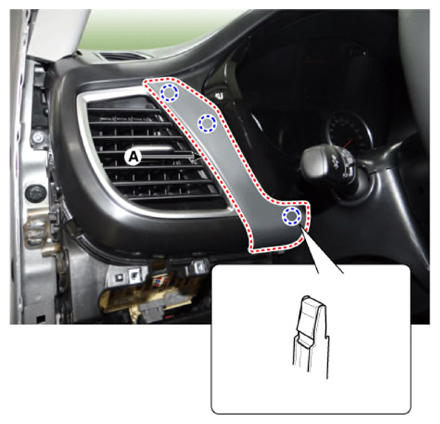

Using a screwdriver or remover, remove the crash pad garnish [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

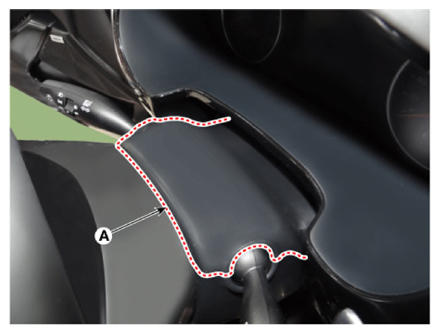

Using a screwdriver or remover, remove the steering column shroud upper panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

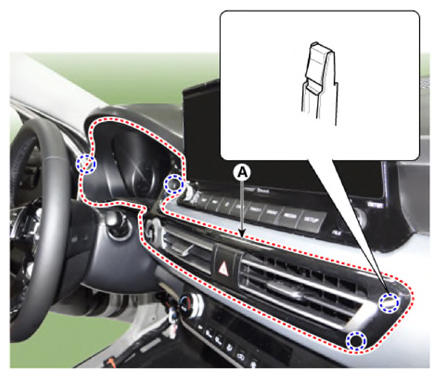

Loosen the mounting screws, remove the cluster fascia panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

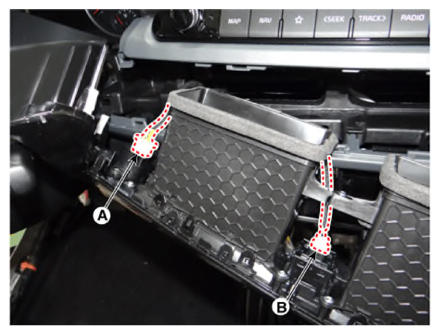

Disconnect the start switch connector (A) hazard switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
