Circuit Diagram

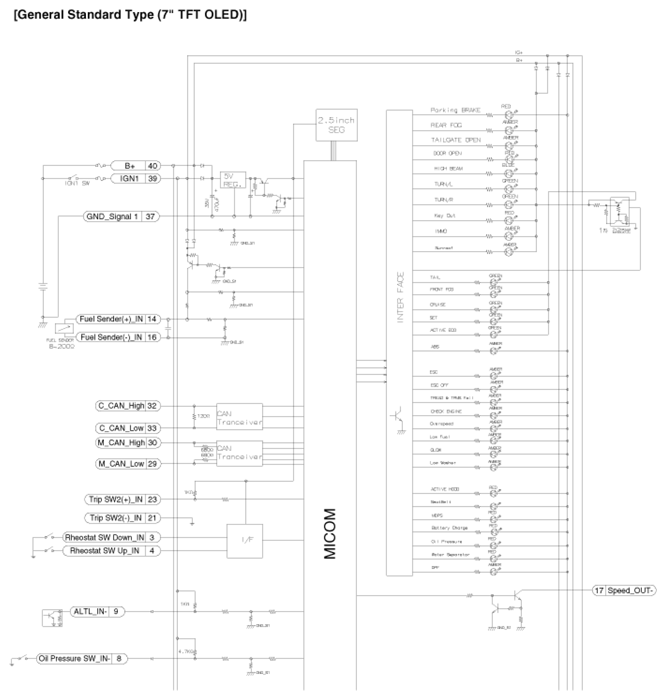

G13046960Courtesy of KIA MOTORS AMERICA, INC.

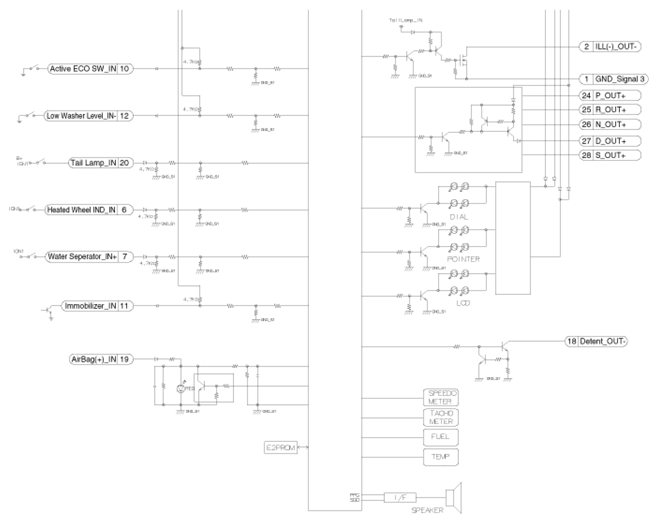

G13046961Courtesy of KIA MOTORS AMERICA, INC.

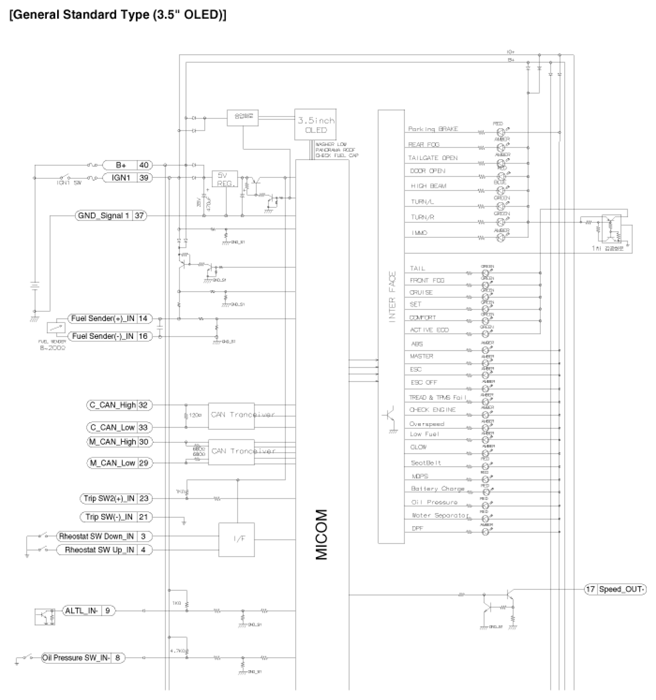

G13046962Courtesy of KIA MOTORS AMERICA, INC.

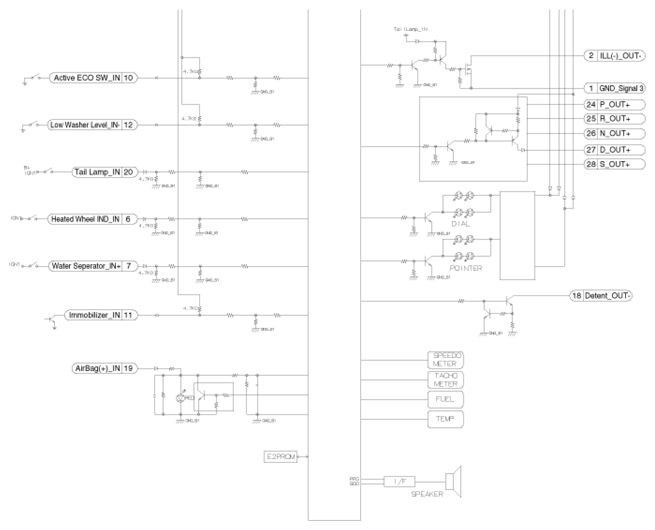

G13046963Courtesy of KIA MOTORS AMERICA, INC.

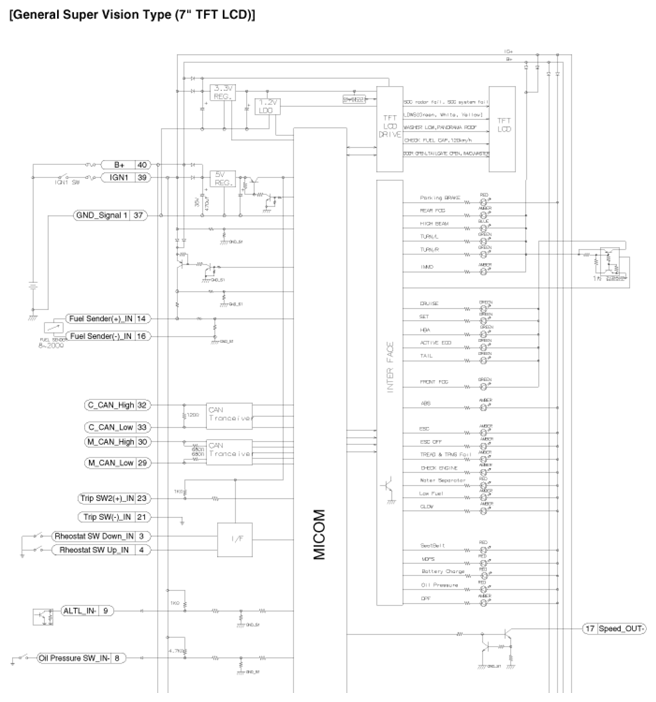

G13046964Courtesy of KIA MOTORS AMERICA, INC.

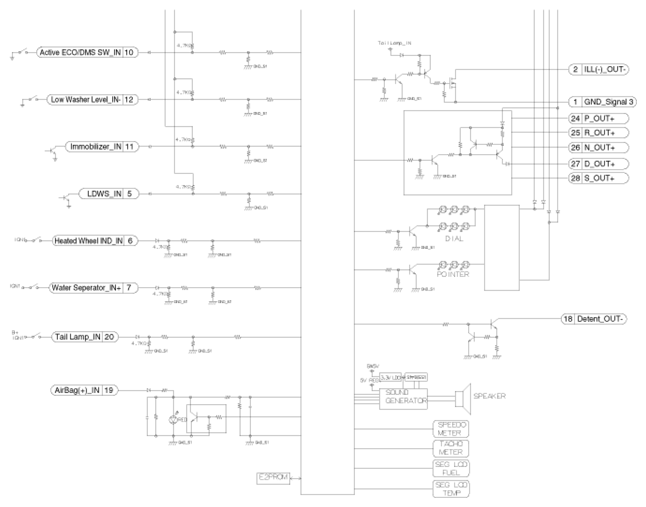

G13046965Courtesy of KIA MOTORS AMERICA, INC.
