Repair Procedures: Removal

CAUTION:
  • Put on gloves to protect your hands.
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

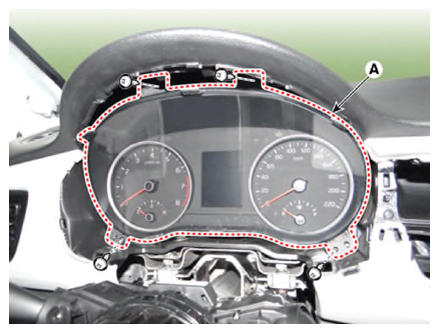

  3. Separate the instrument cluster (A) after loosening the mounting screws.
    G13706223Courtesy of KIA MOTORS AMERICA, INC.

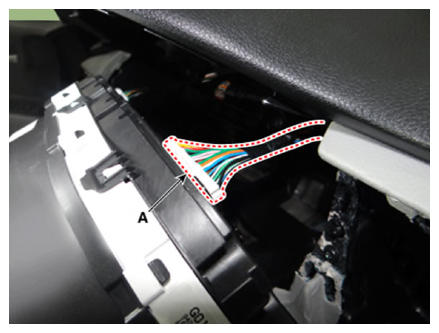

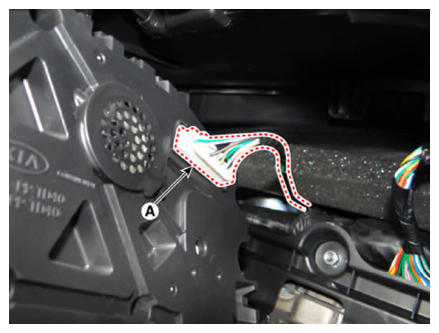

  4. Remover the instrument cluster after disconnecting the cluster connectors (A).
    G13706224Courtesy of KIA MOTORS AMERICA, INC.
    G13706225Courtesy of KIA MOTORS AMERICA, INC.
