CLU Variant Coding

After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel, turn the power on KDS/GDS.

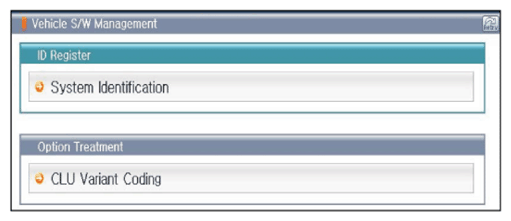

2. Select model and "BCM".

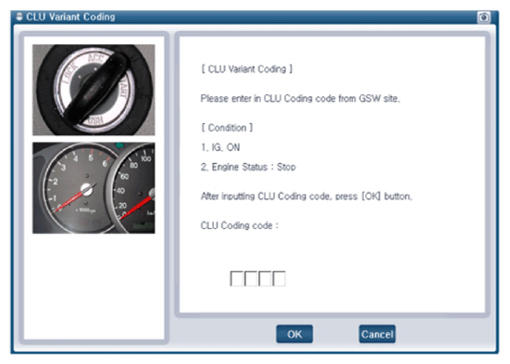

3. Select Variant coding mode to perform.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

4. If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.

   Courtesy of KIA MOTORS AMERICA, INC.
