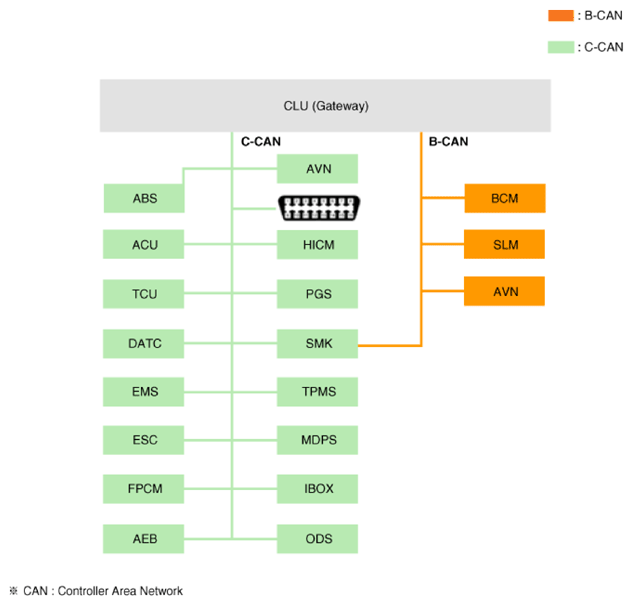

Communication Network Diagram

G13706222Courtesy of KIA MOTORS AMERICA, INC.
Abbreviation Explanation
ACU Airbag Control Unit
AVN Head Unit (Audio/AVN)
B_CAN Body Controller Area Network
BCM Body Control Module
BSD Blind Spot Detection
C_CAN Chassis Controller Area Network
CLU Cluster Module
ESC Electronic Stability Program
EMS Engine Management System
FPCM Fuel Pump Control Module
LDWS Lane Departure Warning System
M_CAN Multimedia Controller Area Network
MDPS Motor Driven Power Steering
MFS Multi-Function Switch
P_CAN Powertrain Controller Area Network
PGS Parking Guide System
SAS Steering Angle Sensor
SMK Smart Key Unit
TCU Transmission Control Unit
TPMS Tire Pressure Monitoring System
VDC Vehicle Dynamic Control
ABS Anti-lock Brake System
