Connector Pin Information

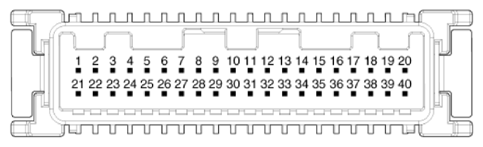

Connector A
| No. | Description |
|---|---|
| 1 | Ground |
| 2 | Illumination (-) |
| 3 | Rheostat switch (Down)_Input |
| 4 | Rheostat switch (Up)_Input |
| 5 | Detent |
| 6 | AT (P Position) |
| 7 | AT (R Position) |
| 8 | AT (N Position) |
| 9 | AT (D Position) |
| 10 | AT ('S' Position) |
| 11 | Immobilizer_Input |
| 12 | Vehicle speed_Output |
| 13 | Alternator_Input |
| 14 | Fuel sender (+)_Input |
| 15 | Vehicle speed_Input |
| 16 | Fuel sender (-)_Input |
| 17 | Water separator (+)_Input |
| 18 | Air bag (+)_Input |
| 19 | Oil press switch_Input |
| 20 | Tail lamp_Input |
| 21 | Trip switch (-) |
| 22 | Trip switch 1 (+) |
| 23 | Trip switch 2 (+) |
| 24 | Active ECO switch_Input |
| 25 | Drive mode switch_Input |
| 26 | MT (R Position) |
| 27 | - |
| 28 | Low washer level_Input |
| 29 | B-CAN (Low) |
| 30 | B-CAN (High) |
| 31 | Alternator_Output |
| 32 | C-CAN (High) |
| 33 | C-CAN (Low) |
| 34 | Outside temp_Input |
| 35 | - |
| 36 | - |
| 37 | Ground |
| 38 | - |
| 39 | IGN1 |
| 40 | Battery (+) |

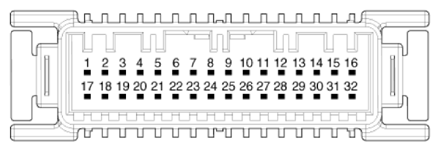

Connector B
| No. | Description |
|---|---|
| 1 | Turn signal lamp (Right)_Input |
| 2 | Turn signal lamp (Left)_Input |
| 3 | Headlamp (High) (+)_Input 1 |
| 4 | Headlamp (Low) (+)_Input |
| 5 | Front fog lamp (+)_Input |
| 6 | - |
| 7 | - |
| 8 | Door open switch (-)_Input |
| 9 | Driver side door open switch (-)_Input |
| 10 | LED lamp fail (LH)_Input |
| 11 | Hood open switch (-)_Input |
| 12 | Key in switch (-)_Input |
| 13 | Tail lamp switch (-)_Input |
| 14 | Rear defogger switch (-)_Input |
| 15 | - |
| 16 | Brake oil switch (-)_Input |
| 17 | Parking brake switch (-)_Input |
| 18 | Front de-icer switch (-)_Input/Heated glass switch (-)_Input |
| 19 | Driver seat belt switch (-)_Input |
| 20 | Assist seat belt switch (-)_Input |
| 21 | Assist seat mat switch (-)_Input |
| 22 | LED lamp fail (RH)_Input |
| 23 | Ground |
| 24 | - |
| 25 | Rear defogger relay (-)_Output |
| 26 | - |
| 27 | Seat belt indicator assist_Output |
| 28 | - |
| 29 | - |
| 30 | - |
| 31 | - |
| 32 | - |
