Main harness Circuit Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the auxiliary battery (-) terminal cable from the battery and wait at least one minute. Disconnect DSAB connector. Ignition "ON".	DSAB connector	1 (high)	Chassis ground	-	Fig.1
	DSAB connector	2 (low)	Chassis ground	-	Fig.1

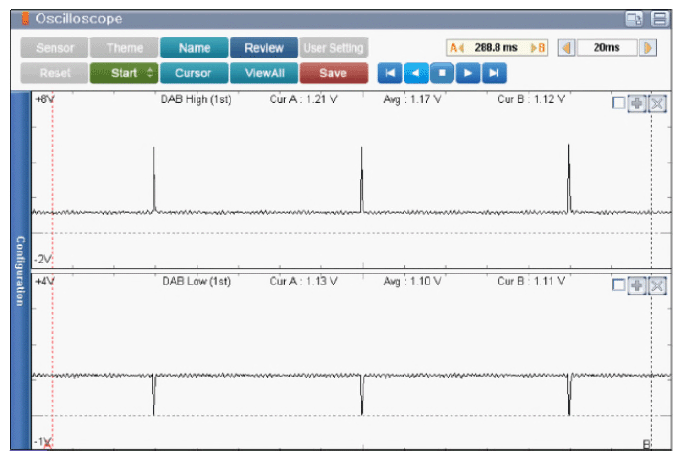

G13460912

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF REPAIR " procedure.
