Home >> Kia >> 2021 >> Niro Touring >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (HEV) (1 Of 2) >> DTC B1367-00: Pretensioner Front-Passenger Resistance Too High >> Wiring Inspection >> Circuit Inspection >> Notes

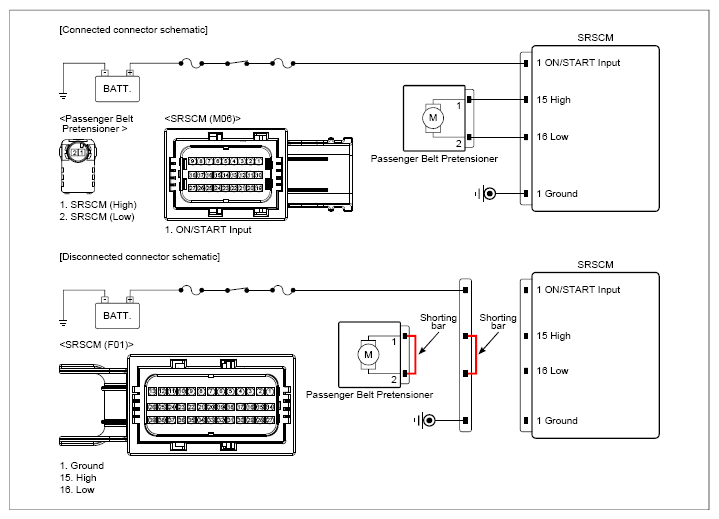

Circuit Inspection: Notes

G13460882Courtesy of KIA MOTORS AMERICA, INC.
