Circuit Inspection

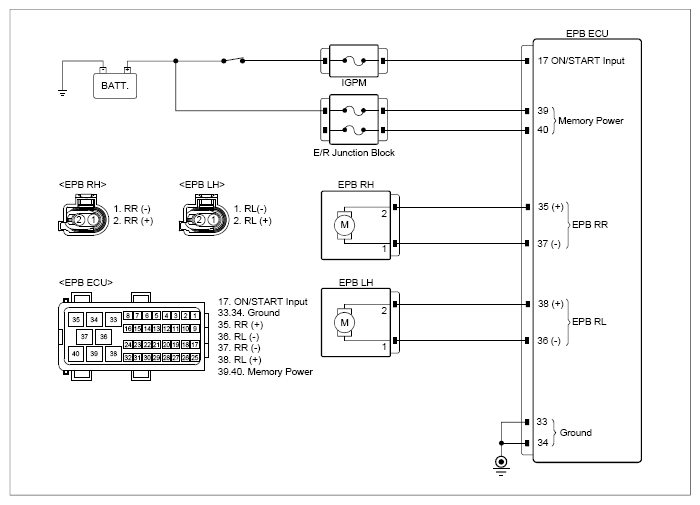

G13473405

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EPB actuator LH connector	2 (+)	EPB ECU	38 (+)	Approx. below 1Ω
	EPB actuator LH connector	1 (-)	EPB ECU	36 (-)	Approx. below 1Ω

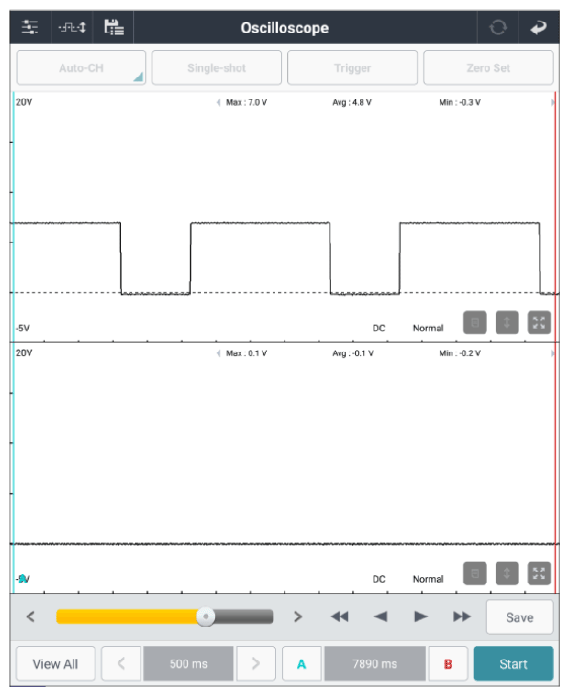

Ignition "ON".	EPB actuator LH connector	2 (+)	Chassis ground	-	Fig.1

G13473406

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Go to "VERIFICATION OF REPAIR " procedure.
