Vehicle S/W Management

CAUTION:

* Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC (FCA) ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.

Inspection Condition	Inspection Procedure	Reference

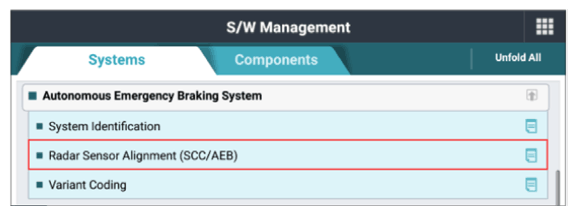

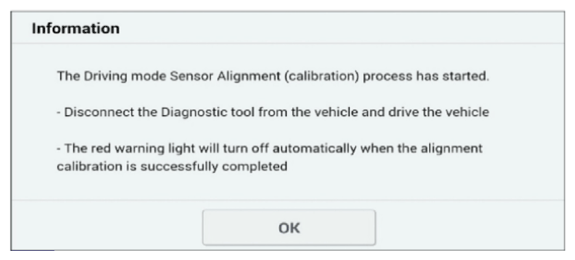

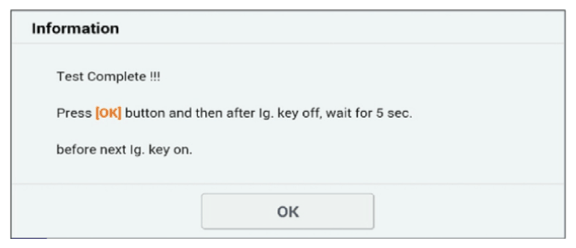

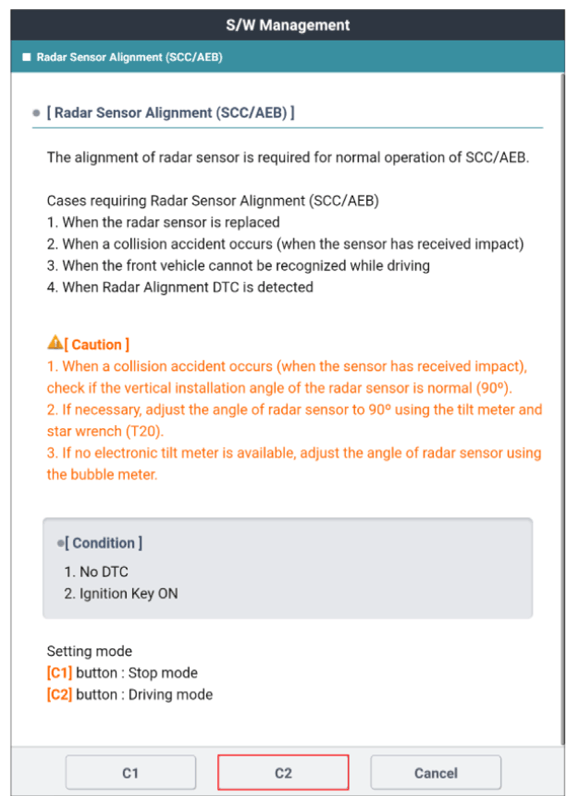

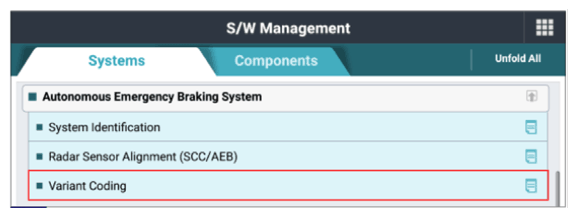

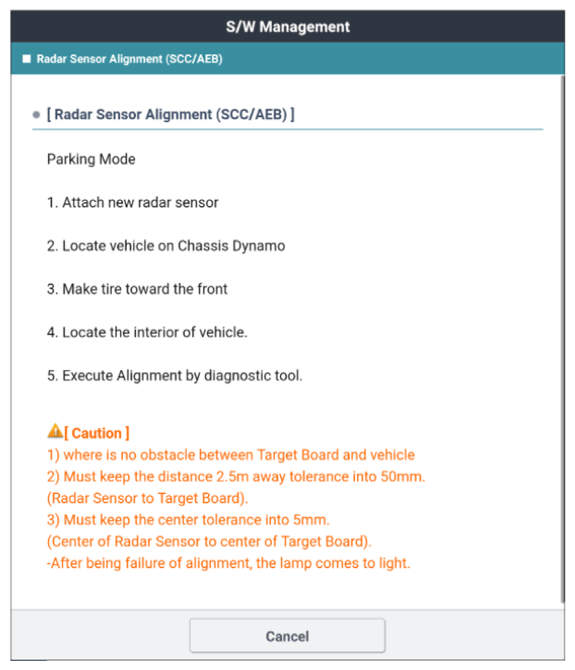

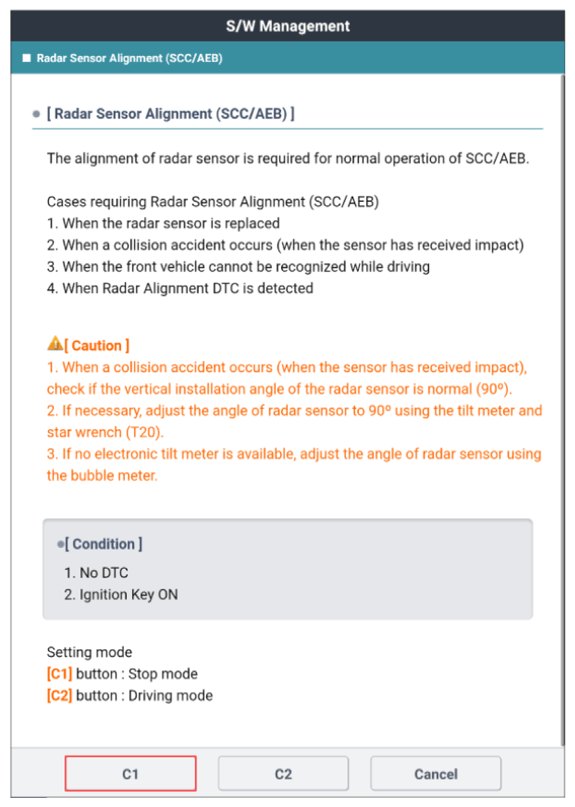

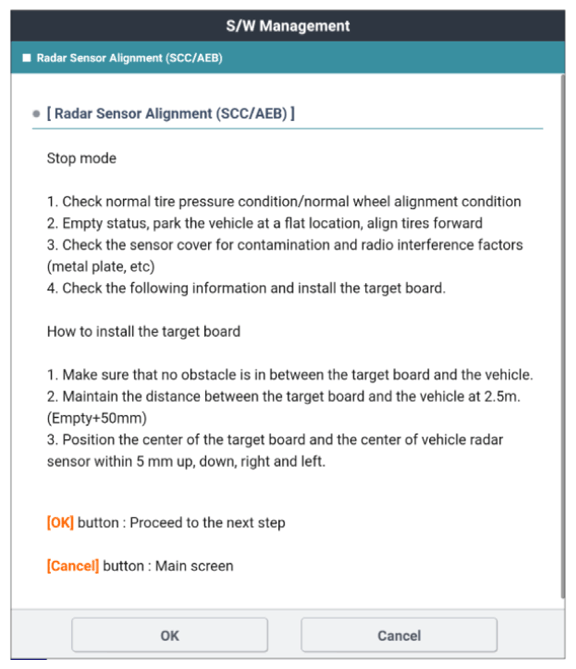

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Fig.1 to 4 Fig.5 to 12

G13457671

Courtesy of KIA MOTORS AMERICA, INC.

G13457672

Courtesy of KIA MOTORS AMERICA, INC.

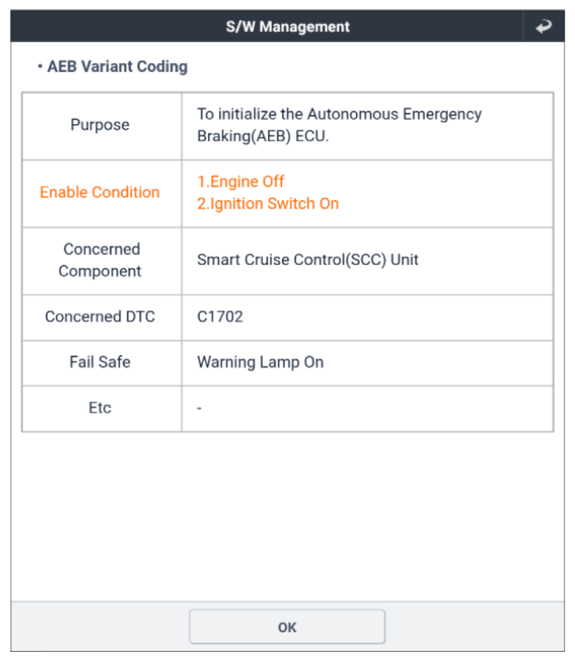

G13457673

Courtesy of KIA MOTORS AMERICA, INC.

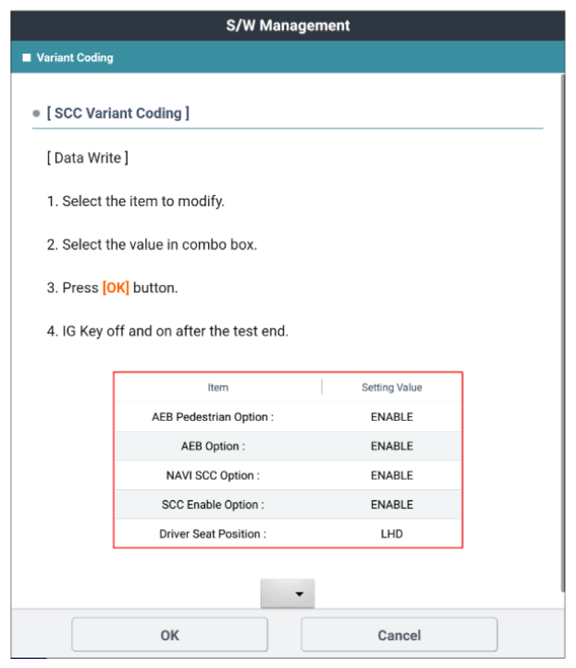

G13457674

Courtesy of KIA MOTORS AMERICA, INC.

G13457675

Courtesy of KIA MOTORS AMERICA, INC.

G13457676

Courtesy of KIA MOTORS AMERICA, INC.

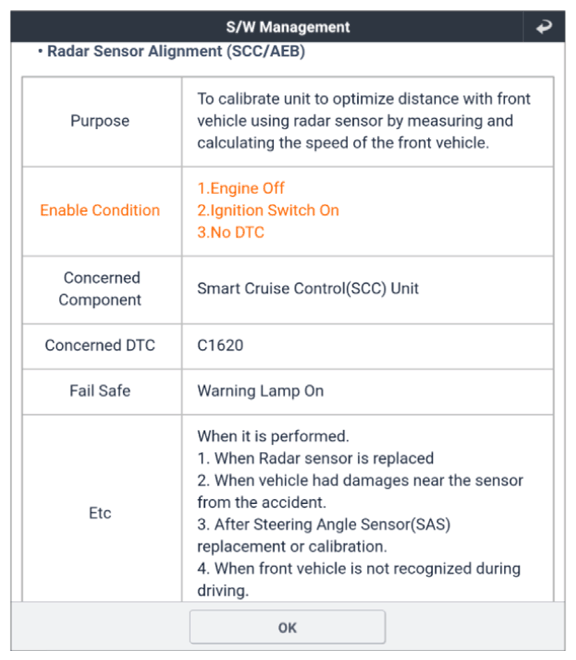

G13457677

Courtesy of KIA MOTORS AMERICA, INC.

G13457678

Courtesy of KIA MOTORS AMERICA, INC.

G13457679

Courtesy of KIA MOTORS AMERICA, INC.

G13457680

Courtesy of KIA MOTORS AMERICA, INC.

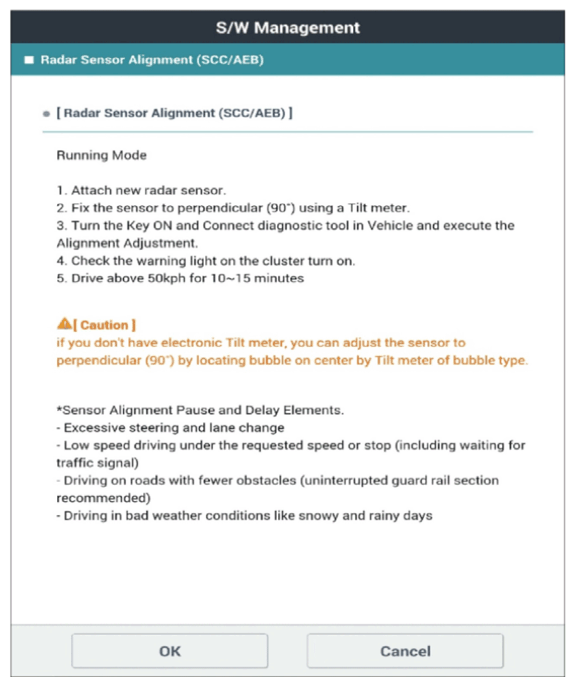

G13457681
