Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

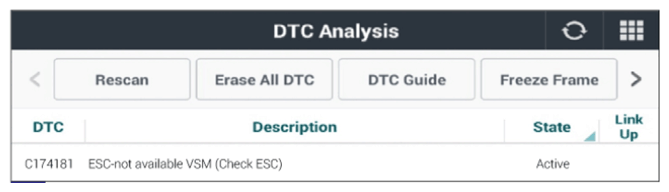

Fig.1 |
Active Fault
- Select IBAU system and Check DTCs related with IBAU system. If DTC is exist, repair as necessary and then confirm clear. Afterward, select SCC (FCA) system and check DTCs.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
History/Pending Fault
- Go to "VERIFICATION OF REPAIR " procedure.
