Vehicle S/W Management

CAUTION:
  • * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC (FCA) ECU is replaced.
  • * Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
  • Fig.1 to 4
  • Fig.5 to 12

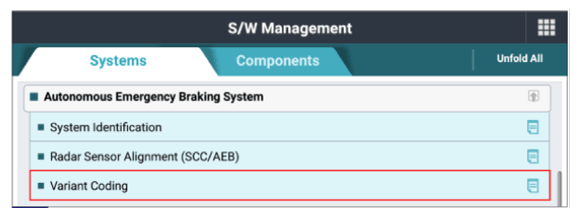

G13457431Courtesy of KIA MOTORS AMERICA, INC.

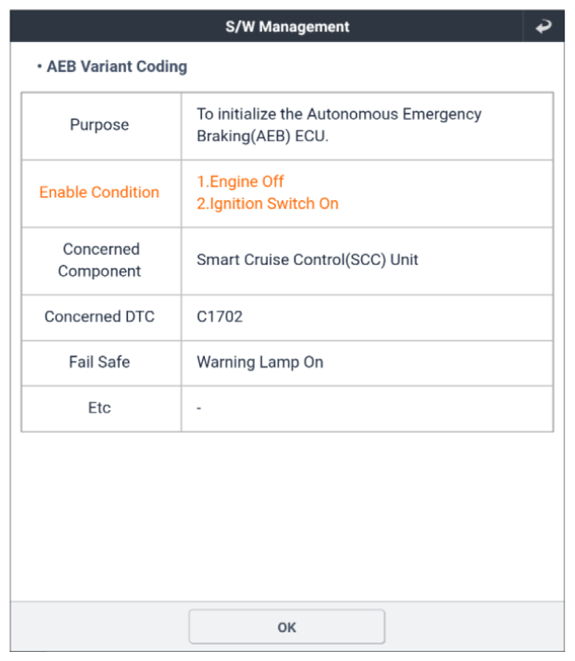

G13457432Courtesy of KIA MOTORS AMERICA, INC.

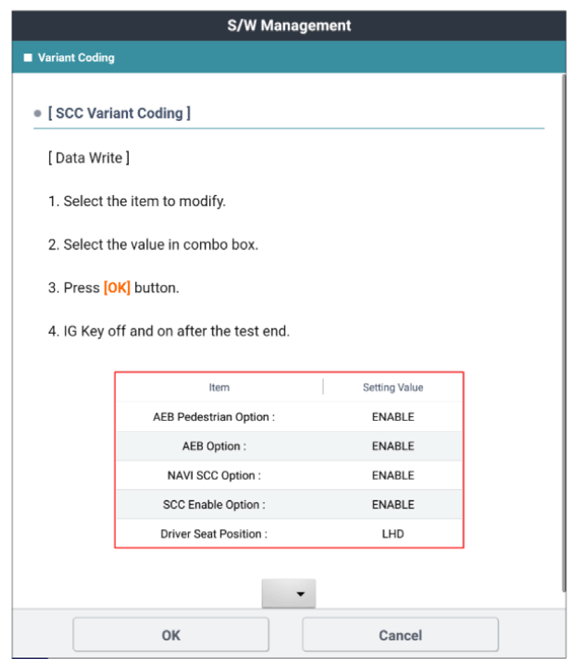

G13457433Courtesy of KIA MOTORS AMERICA, INC.

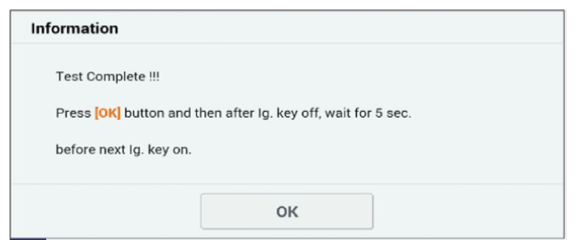

G13457434Courtesy of KIA MOTORS AMERICA, INC.

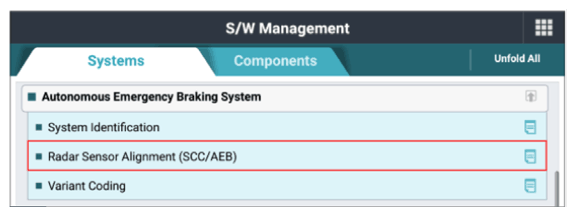

G13457435Courtesy of KIA MOTORS AMERICA, INC.

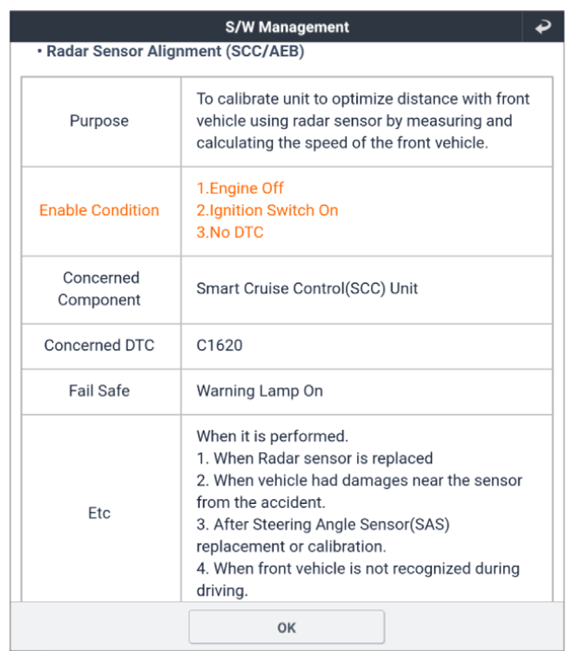

G13457436Courtesy of KIA MOTORS AMERICA, INC.

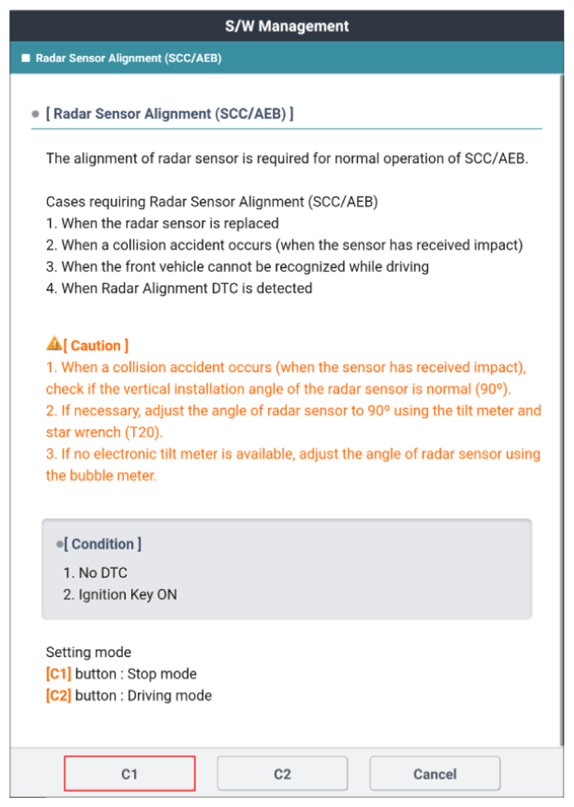

G13457437Courtesy of KIA MOTORS AMERICA, INC.

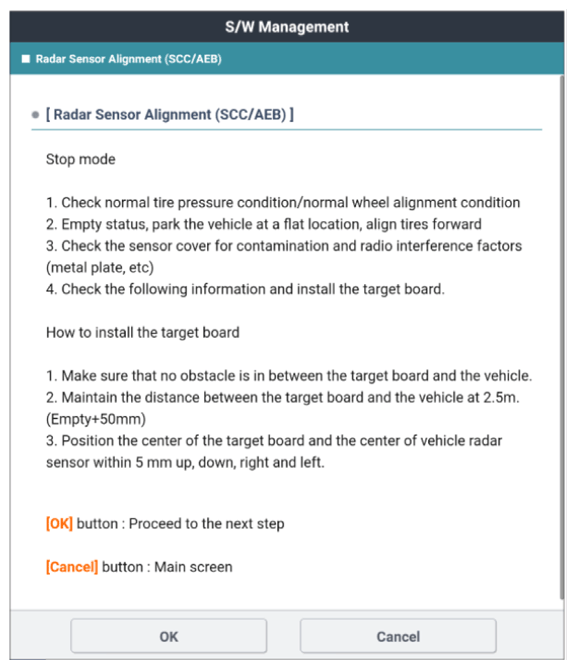

G13457438Courtesy of KIA MOTORS AMERICA, INC.

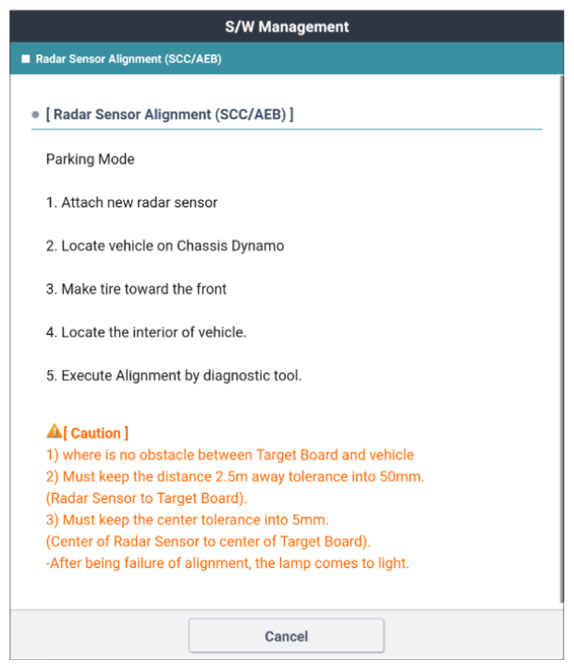

G13457439Courtesy of KIA MOTORS AMERICA, INC.

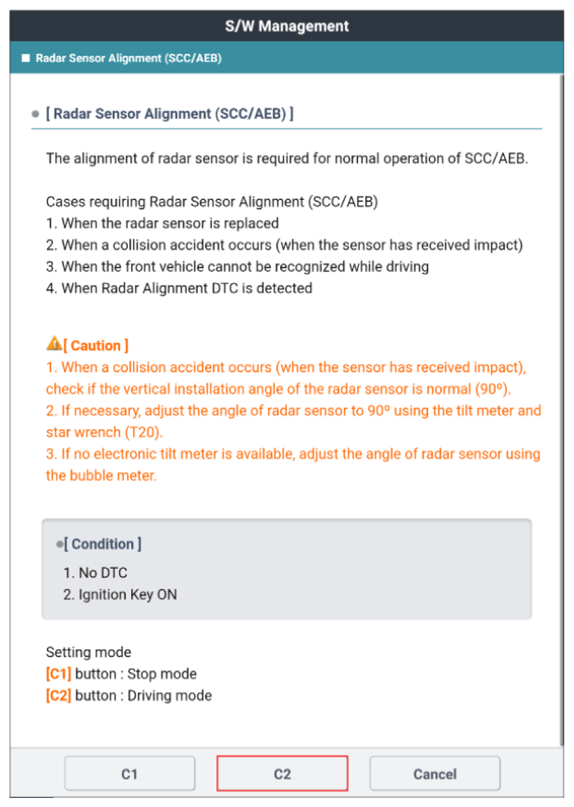

G13457440Courtesy of KIA MOTORS AMERICA, INC.

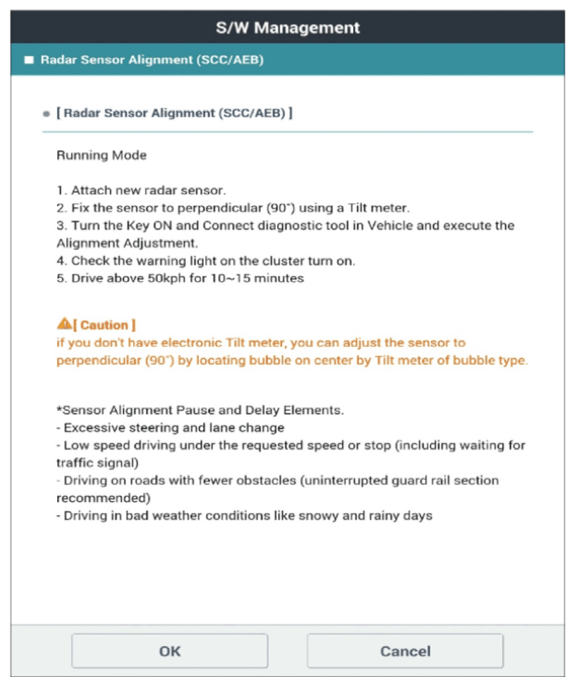

G13457441Courtesy of KIA MOTORS AMERICA, INC.

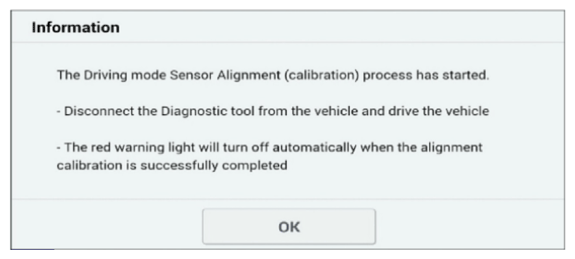

G13457442Courtesy of KIA MOTORS AMERICA, INC.
