Vehicle S/W Management

CAUTION:

* Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC (FCA) ECU is replaced.
* Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.

Inspection Condition	Inspection Procedure	Reference

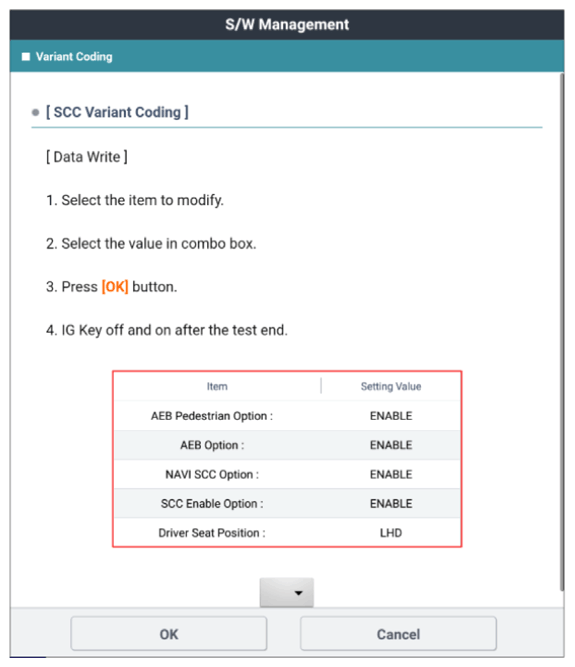

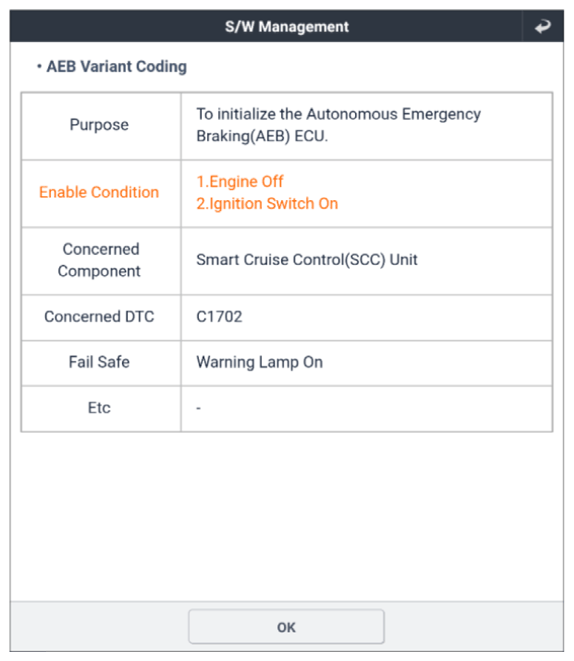

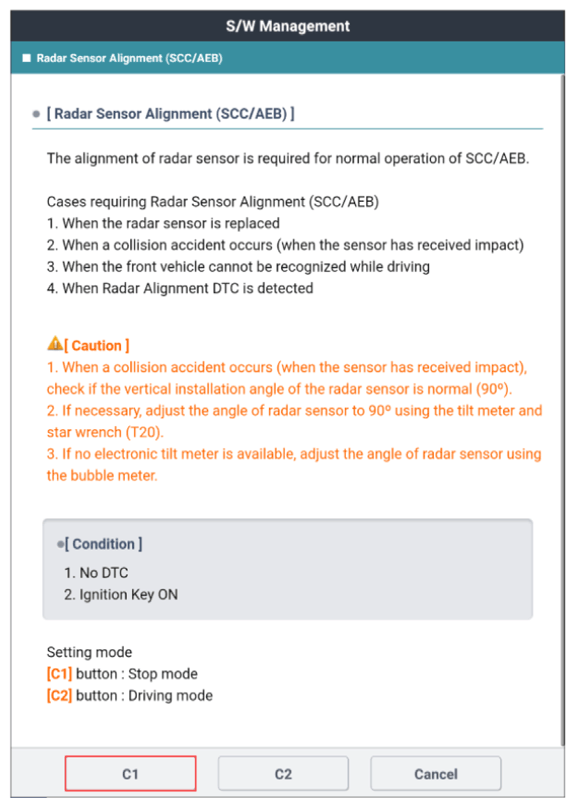

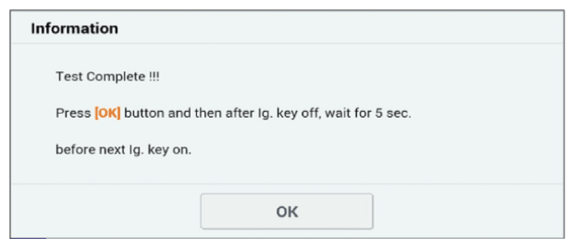

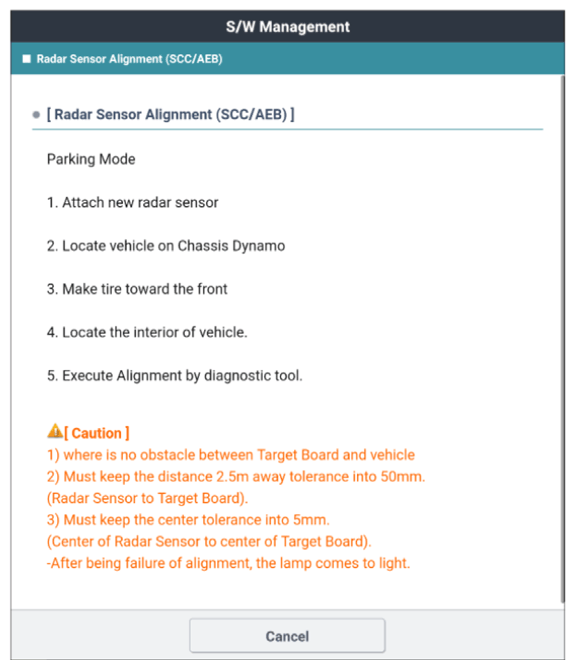

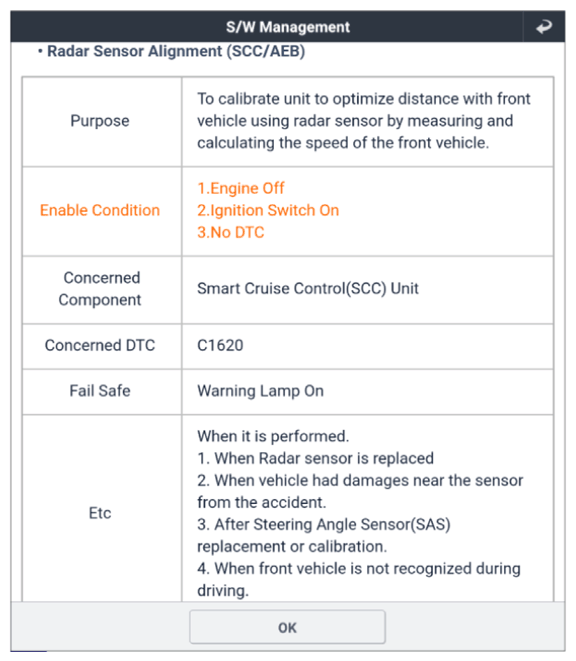

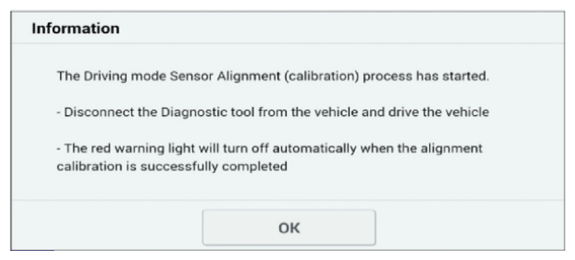

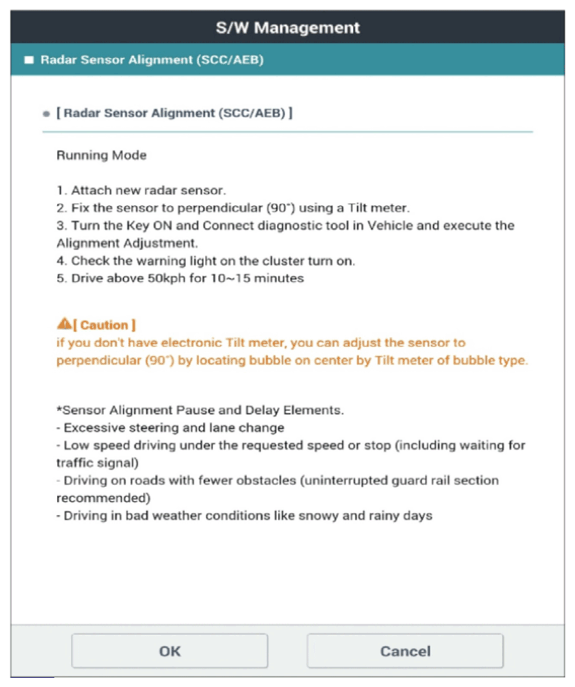

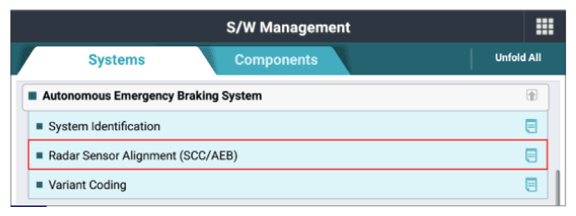

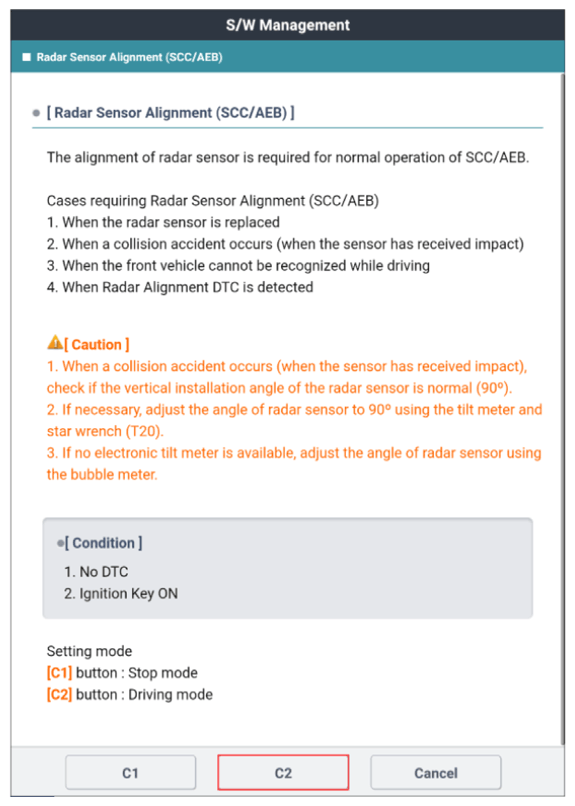

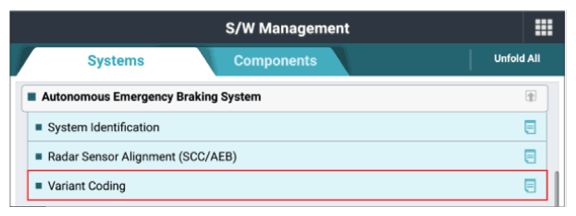

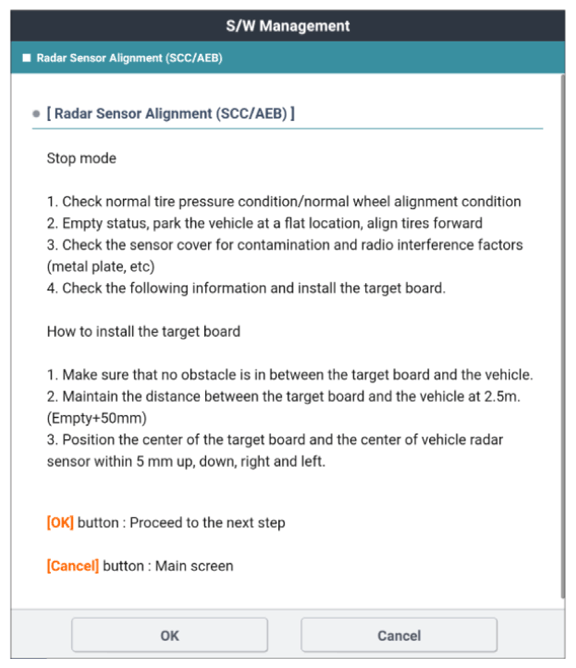

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Fig.1 to 4 Fig.5 to 12
