Vehicle S/W Management

CAUTION:
  • * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/AEB)" on "Vehicle S/W Management", once SCC (FCA) ECU is replaced.
  • * Do not select the [C1] in "Radar Sensor Alignment (SCC/AEB)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
  • Fig.1 to 4
  • Fig.5 to 12

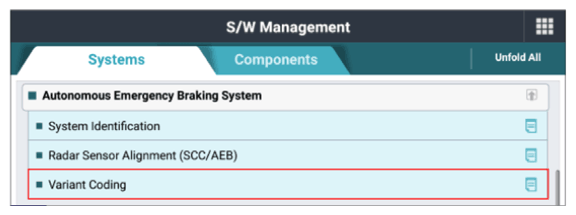

G13457244Courtesy of KIA MOTORS AMERICA, INC.

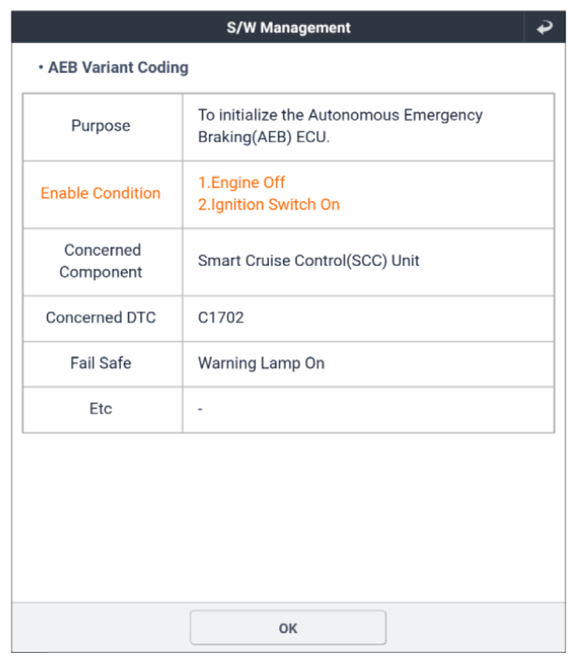

G13457245Courtesy of KIA MOTORS AMERICA, INC.

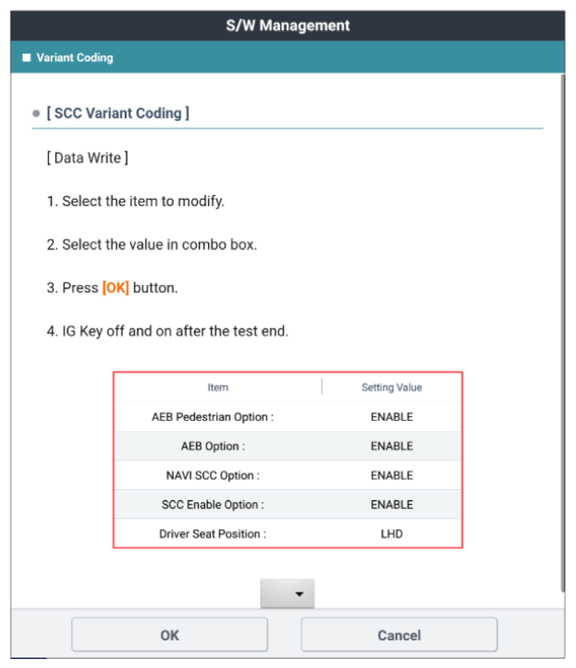

G13457246Courtesy of KIA MOTORS AMERICA, INC.

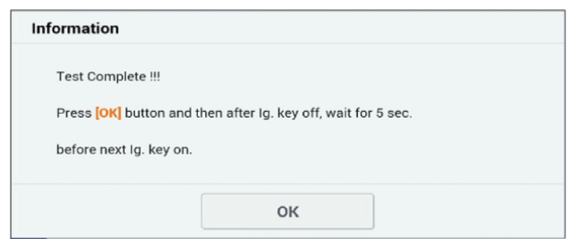

G13457247Courtesy of KIA MOTORS AMERICA, INC.
G13457248Courtesy of KIA MOTORS AMERICA, INC.

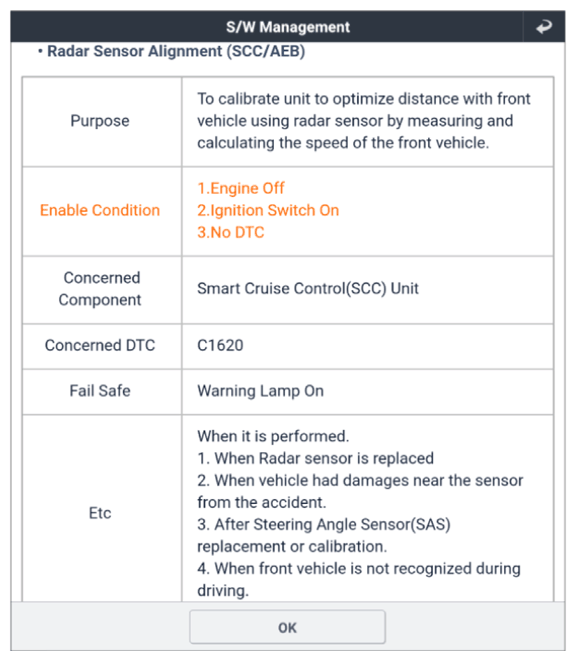

G13457249Courtesy of KIA MOTORS AMERICA, INC.

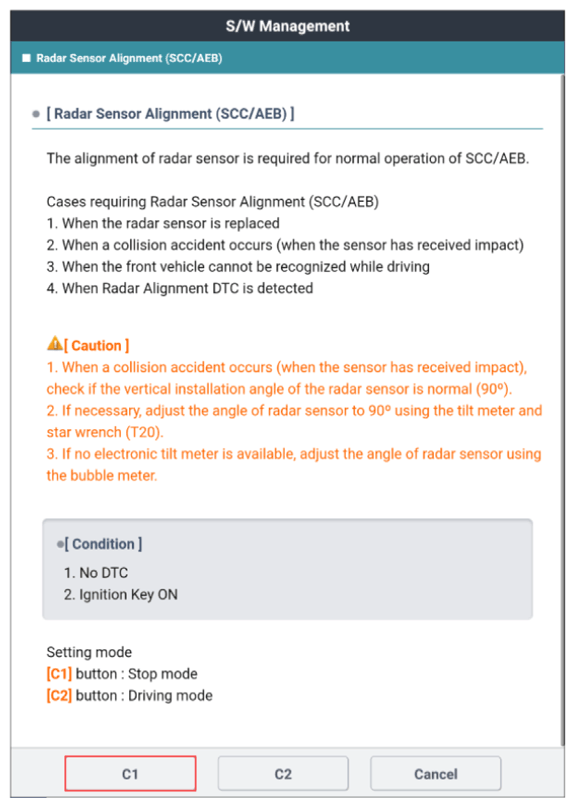

G13457250Courtesy of KIA MOTORS AMERICA, INC.

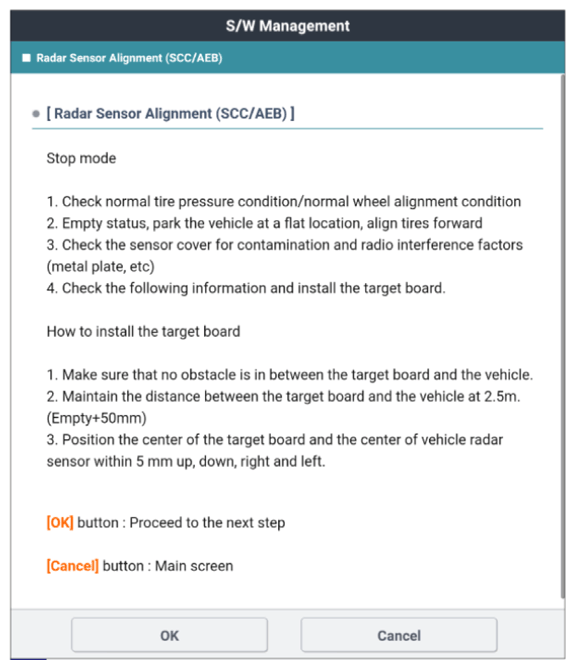

G13457251Courtesy of KIA MOTORS AMERICA, INC.

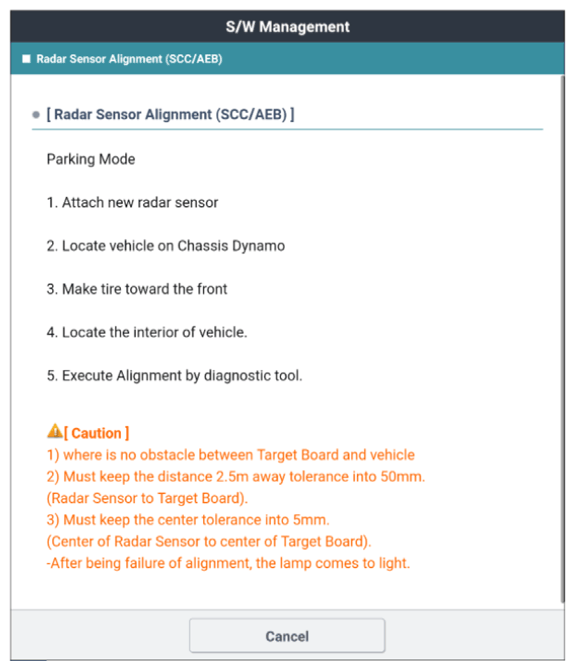

G13457252Courtesy of KIA MOTORS AMERICA, INC.

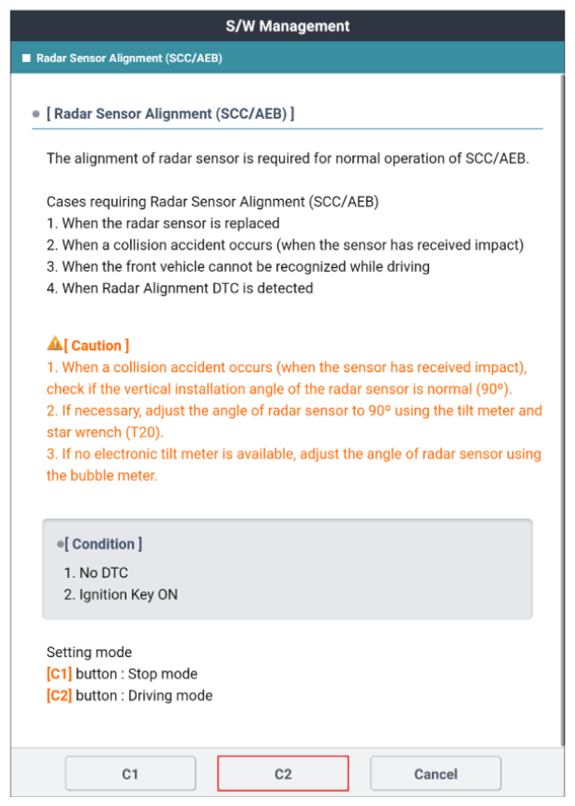

G13457253Courtesy of KIA MOTORS AMERICA, INC.

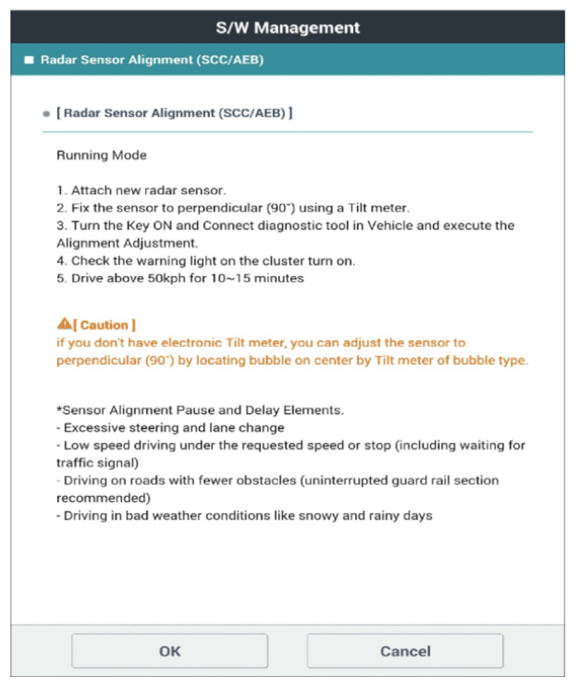

G13457254Courtesy of KIA MOTORS AMERICA, INC.

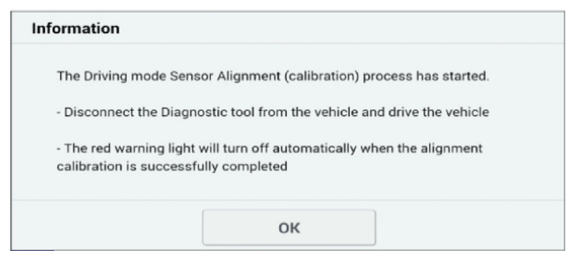

G13457255Courtesy of KIA MOTORS AMERICA, INC.
