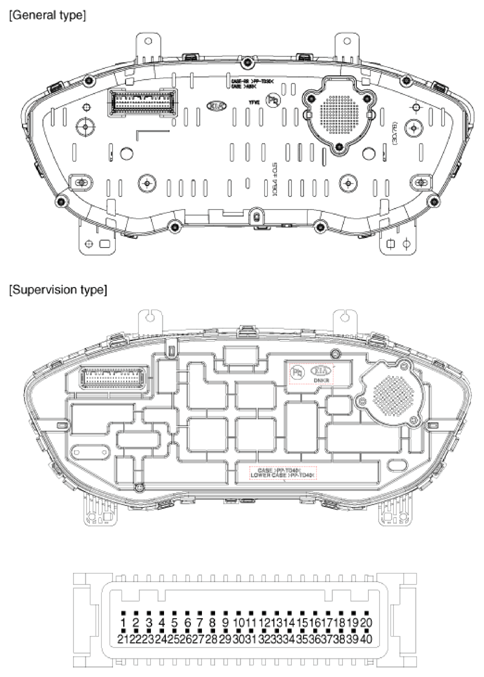

Connector And Terminal Function
| Pin | Function |
|---|---|
| 1 | Ground |
| 2 | Illumination (-) |
| 3 | Rheostat switch (Down) |
| 4 | Rheostat switch (Up) |
| 5 | - |
| 6 | Oil pressure switch input |
| 7 | Washer level low input |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | Detent |
| 12 | - |
| 13 | - |
| 14 | Fuel sender (+) input |
| 15 | - |
| 16 | Fuel sender (-) input |
| 17 | Immobilizer input |
| 18 | Vehicle speed output |
| 19 | Air bag (+) input |
| 20 | Tail lamp input |
| 21 | Trip switch (-) input |
| 22 | Trip switch 1 (+) input |
| 23 | Trip switch 2 (+) input |
| 24 | AT ('P' Position) |
| 25 | AT ('R' Position) |
| 26 | AT ('N' Position) |
| 27 | AT ('D' Position) |
| 28 | AT ('S' Position) |
| 29 | M-CAN (Low) |
| 30 | M-CAN (High) |
| 31 | - |
| 32 | C-CAN (High) |
| 33 | C-CAN (Low) |
| 34 | - |
| 35 | - |
| 36 | - |
| 37 | Ground |
| 38 | IGN3 (PHEV Only) |
| 39 | IGN1 |
| 40 | Battery (+) |
