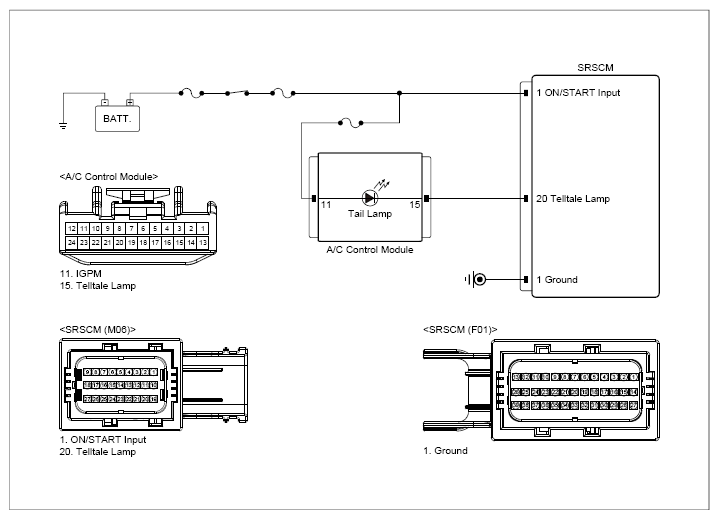

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
A/C control module connector | 11 (PAB OFF warning lamp power) | Chassis ground | - | Battery voltage |
|
SRSCM connector | 20 (PAB OFF warning lamp) | Chassis ground | - | Over 1.9V |
|
SRSCM connector | 20 (PAB OFF warning lamp) | Chassis ground | - | Below 1.9V |
Good
- Check telltale lamp and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Check airbag fuse, passenger compartment junction block, harness between junction block and SRSCM. Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.
