LEMON Manuals: Even more car manuals for everyone
Home >> Kia >> 2021 >> Niro LXS >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (HEV) (2 Of 2) >> DTC B1713-00: Knee Airbag - Driver Resistance Circuit Short To Ground >> Wiring Inspection >> Circuit Inspection >> Notes

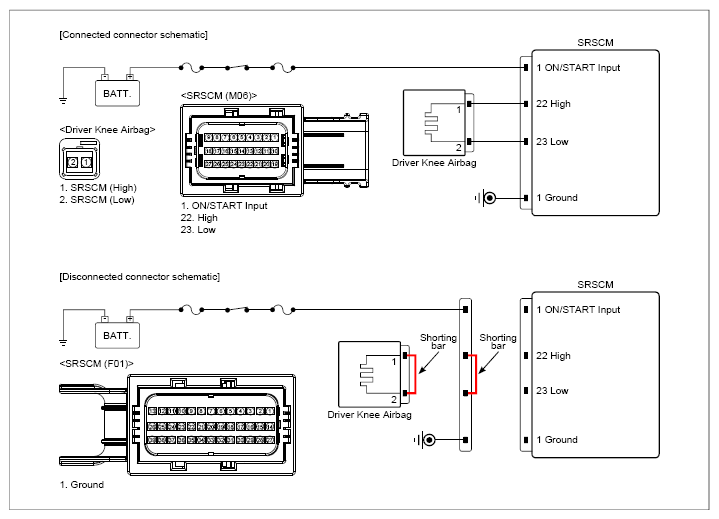

Circuit Inspection: Notes

G13470324Courtesy of KIA MOTORS AMERICA, INC.
