Circuit Inspection

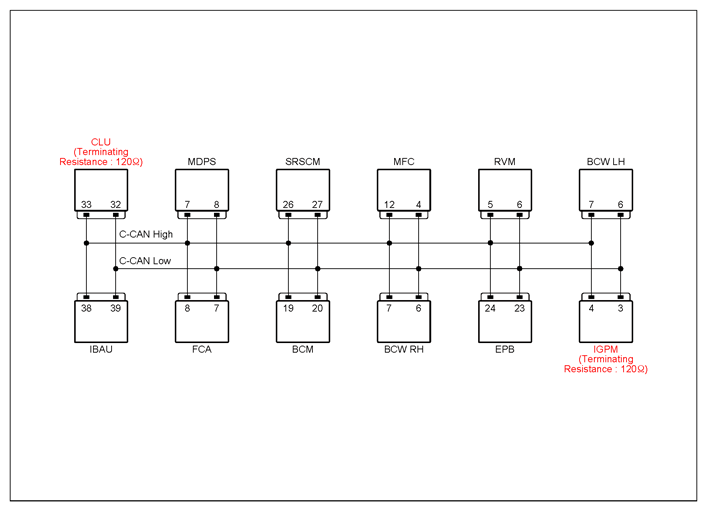

G13458282Courtesy of KIA MOTORS AMERICA, INC.

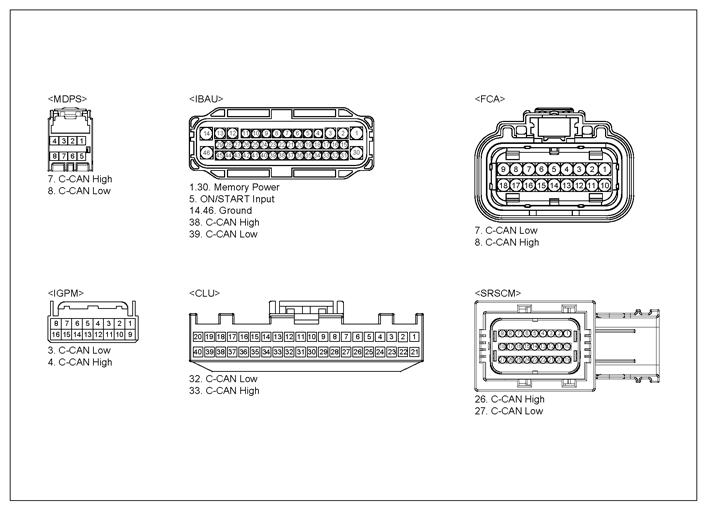

G13458283Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "ON".
 IGPM Connector 4 (C-CAN high) IGPM Connector 3 (C-CAN low) Fig.1
G13458284Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

CAN RESISTANCE INSPECTION CONDITION

Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF" and disconnect the battery.
  2. Wait about four minutes.
  3. Disconnect the electrical connector(s) from the concerned component.
 IBAU Connector 38 (C-CAN high) IBAU Connector 39 (C-CAN low) Approx. 60Ω

Good

No Good
