Circuit Inspection

G13458131

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	Rear Wheel Sensor RH Connector	2 (power)	Chassis ground	-	B+
Ignition "ON".	Rear Wheel Sensor RH Connector	1 (signal)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Rear Wheel Sensor RH Connector	2 (power)	Chassis ground	-	0V
	Rear Wheel Sensor RH Connector	1 (signal)	Chassis ground	-	∞ (infinity)Ω
	Rear Wheel Sensor RH Connector	1 (signal)	IBAU Connector	43 (signal)	Approx. below 1Ω
	Rear Wheel Sensor RH Connector	2 (power)	IBAU Connector	34 (power)	Approx. below 1Ω

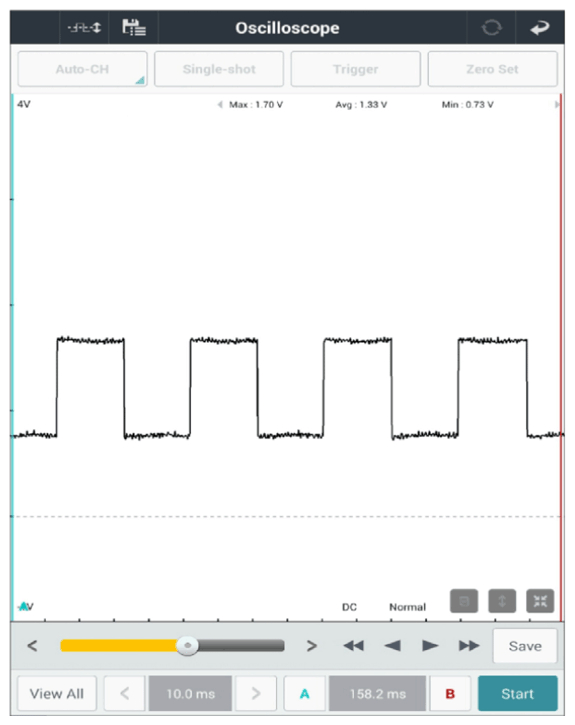

G13458132

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
