Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

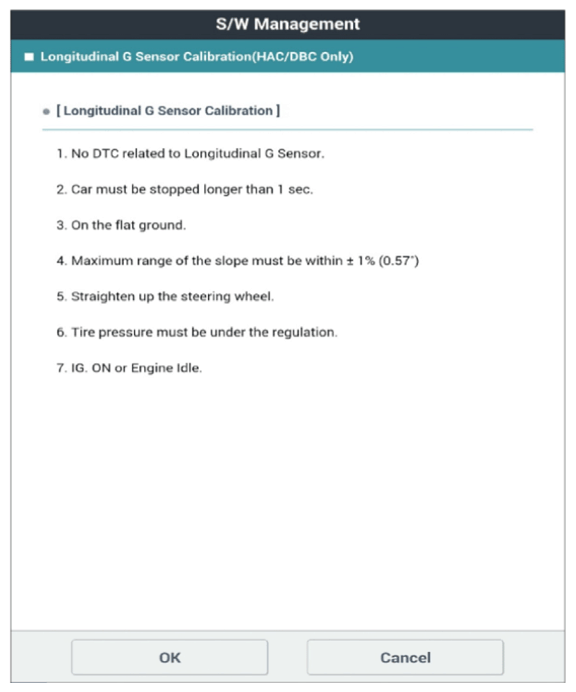

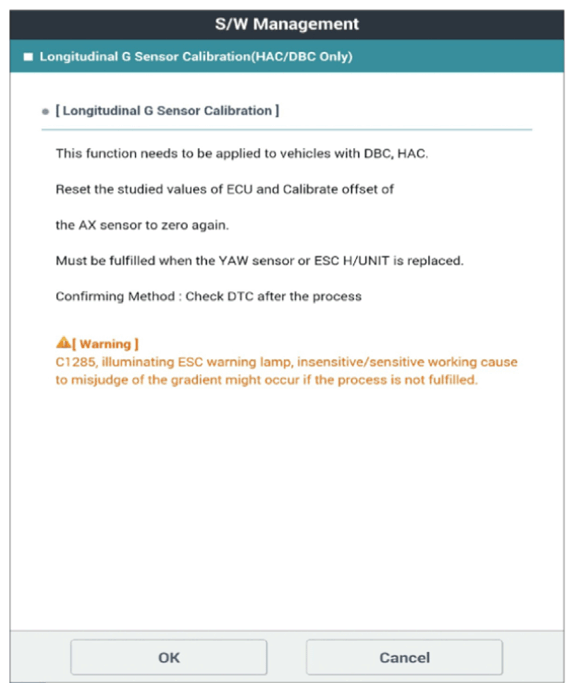

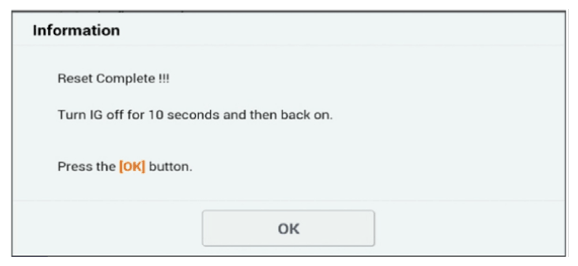

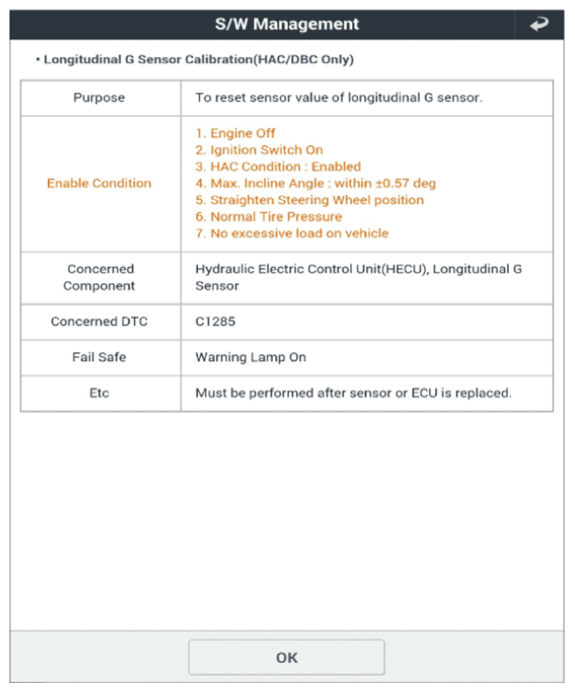

Longitudinal G Sensor Calibration (HAC/DBC Only). Ignition "ON" Engine "ON".	Connect KDS to Data Link Connector (DLC). Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS.	Fig.1 to 4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be caused by incorrect calibration or yaw rate sensor has been repaired/replaced and calibration has not been performed. Go to "VERIFICATION OF REPAIR " procedure.
Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

No Good
