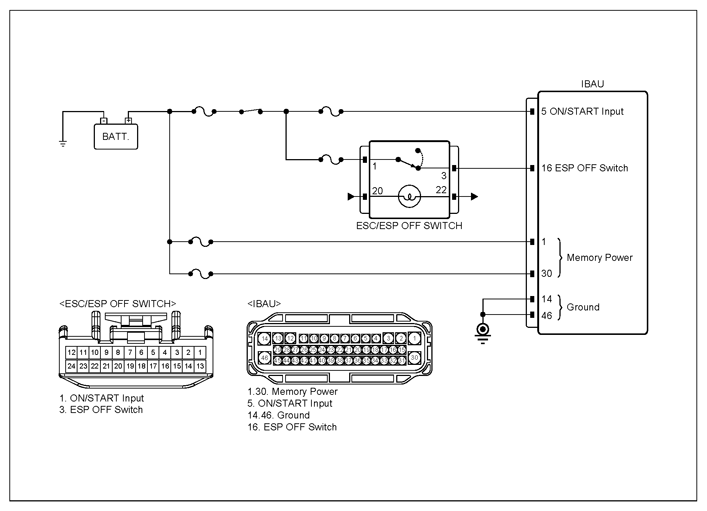

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ESC/ESP OFF switch Connector	1 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ESC/ESP OFF switch Connector	3 (signal)	IBAU Connector	16 (signal)	Approx. below 1Ω
	ESC/ESP OFF switch Connector	3 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
