Multifunction Switch Inspection

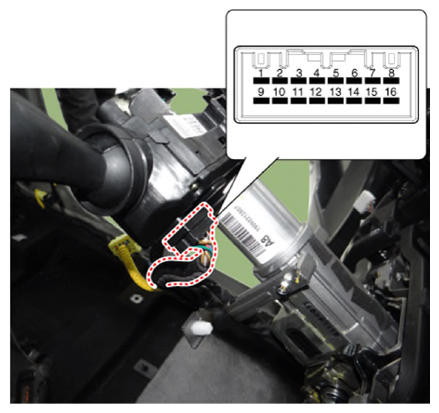

- Check for continuity between the terminals in each switch position as shown below.
| Switch | Switch position | Switch terminal | Resistance (Ω, ±3.5%) |
|---|---|---|---|
| Front wiper switch | MIST | 1-9 | 330 |
| OFF | ∞ | ||
| Intermittent (AUTO) | 800 | ||
| LOW | 1, 800 | ||
| HIGH | 5, 700 | ||
| Rear wiper switch | OFF | 9-16 | ∞ |
| LOW | 910 | ||
| HIGH | 2, 910 | ||
| Wiper intermittent volume | Volume 1 | 7-9 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1, 310 | ||
| Volume 4 | 2, 610 | ||
| Volume 5 | 7, 310 | ||
| Fog lamp switch | OFF | 9-10 | ∞ |
| Front fog lamp | 910 | ||
| Rear fog lamp | 2, 910 | ||
| Turn signal switch | OFF | 9-12 | ∞ |
| Left | 910 | ||
| Right | 2, 910 | ||
| Dimmer & Passing switch | OFF | 9-13 | ∞ |
| Passing | 910 | ||
| Dimmer | 2, 910 | ||
| Light switch | OFF | 9-14 | ∞ |
| AUTO/DRL | 680 | ||
| Tail lamp | 1, 680 | ||
| Low beam | 5, 580 |
