Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

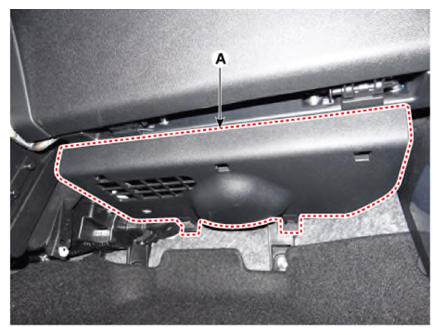

Using a screwdriver or remover and remove the crash pad under cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad garnish assembly [RH].
(Refer to Crash Pad - "CRASH PAD GARNISH ")
Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")

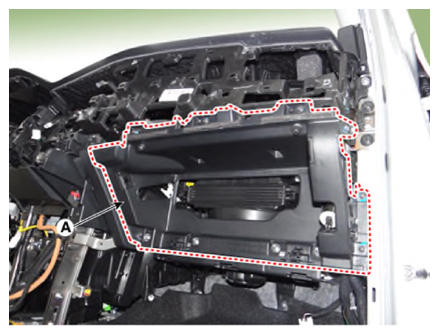

After loosening the mounting screws and bolts, remove the glove box housing (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector are connected in properly.
