Home >> Kia >> 2021 >> Niro LX >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (HEV) (2 Of 2) >> DTC B1733-00: Anchor Pretensioner Front-Driver Resistance Circuit Short To Battery >> Wiring Inspection >> Circuit Inspection >> Notes

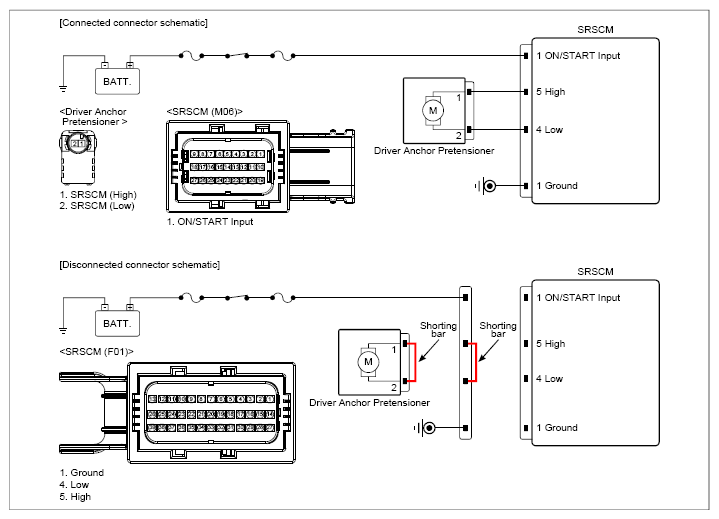

Circuit Inspection: Notes

G13470343Courtesy of KIA MOTORS AMERICA, INC.
