Monitor DTC Status

Inspection Condition Inspection Procedure Refernce
1. Ignitionn "ON". 1. Connect KDS to Data Link Connector (DLC).

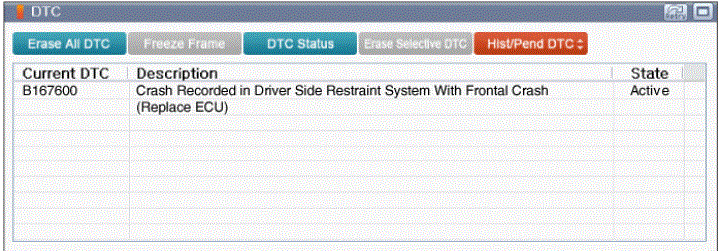

2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.		 Figure below
G00599814Courtesy of KIA MOTORS AMERICA, INC.
Active Fault → Clear the DTCs and carefully re-do this troubleshooting guide steps.
→ If problem still occurs, replace SRSCM and then go to "Verification of Repair " procedure.
History/Pending Fault → Go to "Verification of Repair " procedure.
