Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Ignition "ON", engine "OFF". No occupant on the passenger seat.	Connect KDS to Data Link Connector (DLC). Monitor parameters in "Current Data" with KDS.	Fig.1

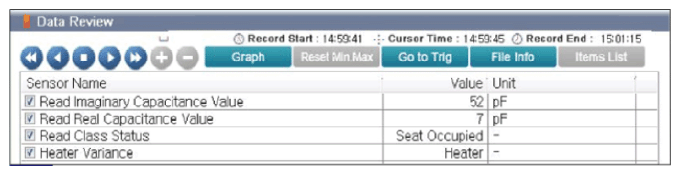

Ignition "ON", engine "OFF". Occupant on the passenger seat		Fig.2

G13470261

Courtesy of KIA MOTORS AMERICA, INC.

G13470262

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or SRSCM's connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "BODY SENSOR RESET " procedure.
