Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
OCS ECU Connector | 3 (ON/START input) | Chassis ground | - | Approx. 14.9V |
|
OCS ECU Connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "CAN communication Line Inspection" procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
| CAN communication Line Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

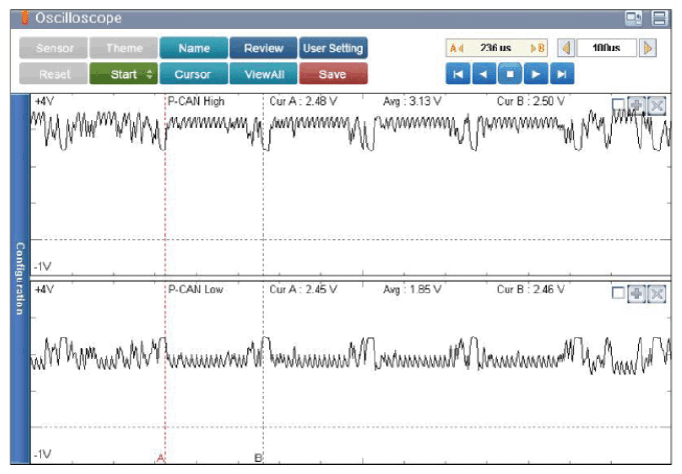

OCS ECU Connector | 1 (P-CAN high) | Chassis ground | - | Fig.1 |
| OCS ECU Connector | 2 (P-CAN low) | Chassis ground | - | ||
|
OCS ECU Connector | 1 (P-CAN high) | OCS ECU Connector | 2 (P-CAN low) | Approx. 600 |
|
ECM (component side) | 55 (P-CAN high) | ECM (component side) | 77 (P-CAN low) | Approx. 1200 |
| IGPM (component side) | 2 (P-CAN high) | IGPM (component side) | 1 (P-CAN low) | Approx. 1200 | |
|
OCS ECU connector | 1 (P-CAN high) | Chassis ground | - | 0V |
| OCS ECU connector | 2 (P-CAN low) | Chassis ground | - | 0V | |
|
OCS ECU connector | 1 (P-CAN high) | Chassis ground | - | ∞(infinity)Ω |
| OCS ECU connector | 2 (P-CAN low) | Chassis ground | - | ∞(infinity)Ω | |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or SRSCM's connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
