Circuit Inspection

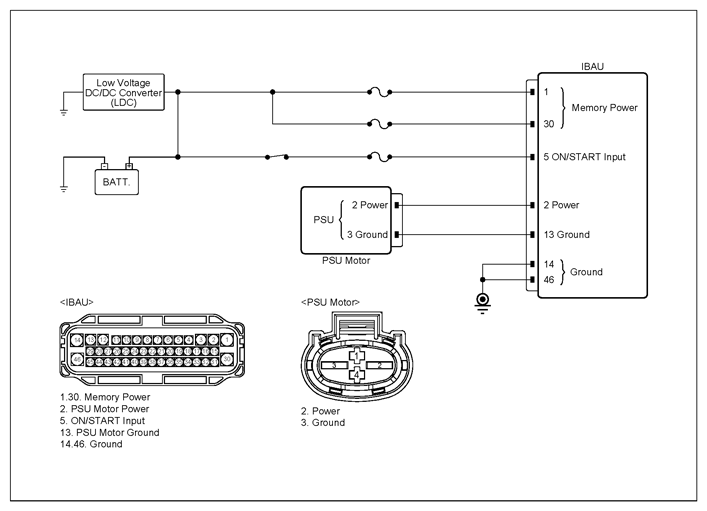

G13458145

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	PSU Motor connector	2 (power)	Chassis ground	-	∞ (infinity)Ω
	PSU Motor connector	3 (ground)	Chassis ground	-	∞ (infinity)Ω
	PSU Motor connector	2 (power)	Chassis ground	-	0V
	PSU Motor connector	3 (ground)	Chassis ground	-	0V
	PSU Motor connector	2 (power)	IBAU Connector	2 (power)	Approx. below 1Ω
	PSU Motor connector	3 (ground)	IBAU Connector	13 (ground)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
