Vehicle S/W management

Inspection Condition Inspection Procedure Reference
  1. Variant Coding.
  2. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 3

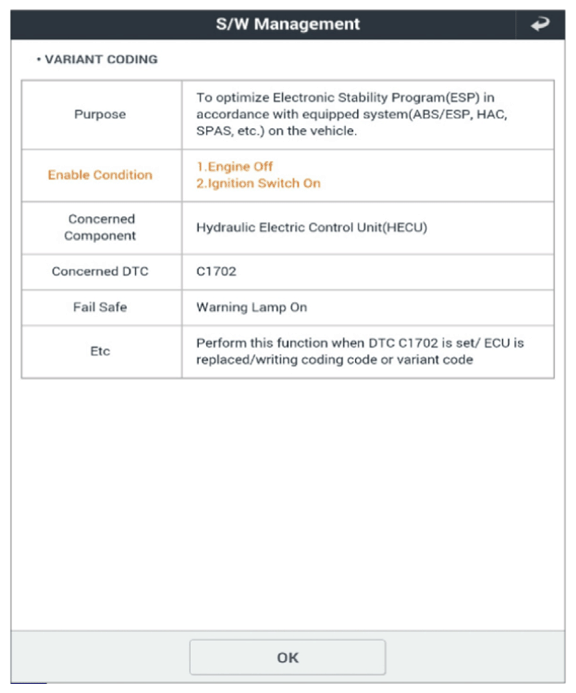

G13458350Courtesy of KIA MOTORS AMERICA, INC.

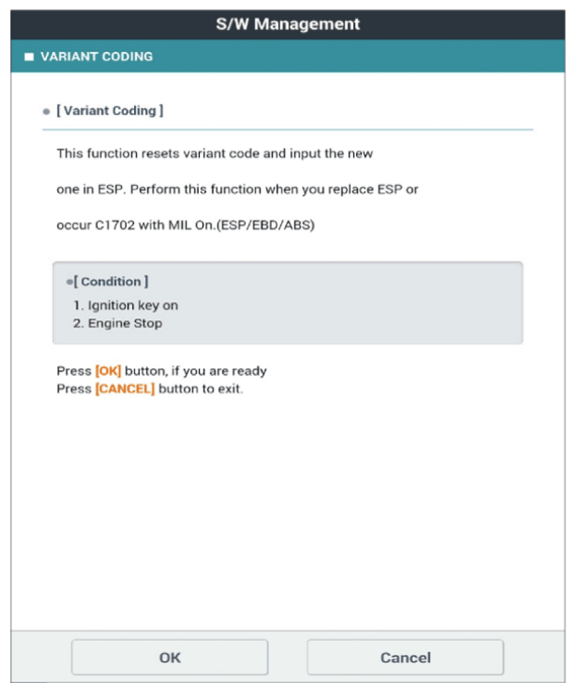

G13458351Courtesy of KIA MOTORS AMERICA, INC.

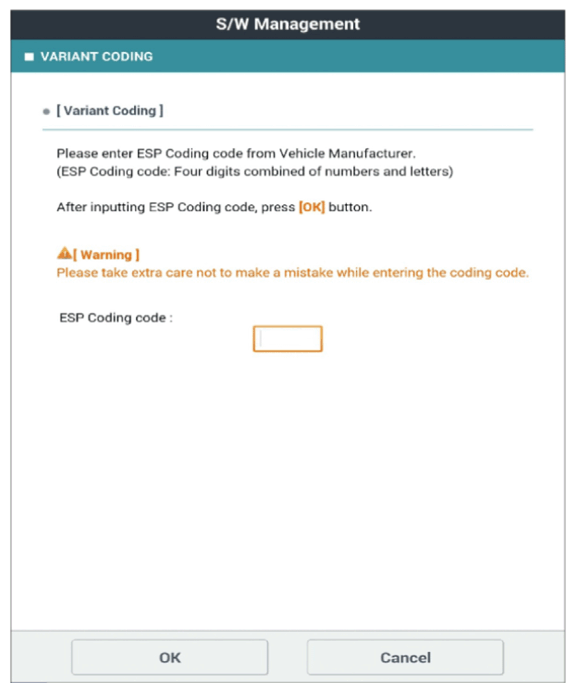

G13458352Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Variant Coding.
  2. Ignition "ON", Engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Auto Detected Configuration Reset (ESP (ESC) Only)" in "Vehicle S/W management" with KDS.
 Fig.1 to 3

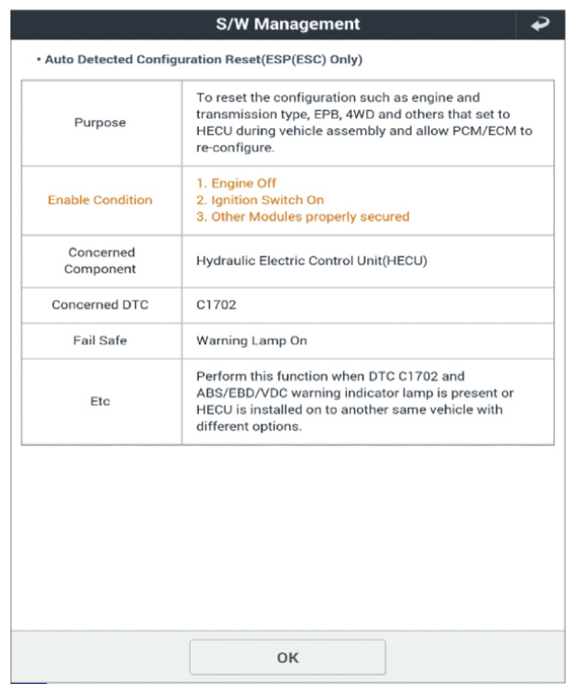

G13458353Courtesy of KIA MOTORS AMERICA, INC.

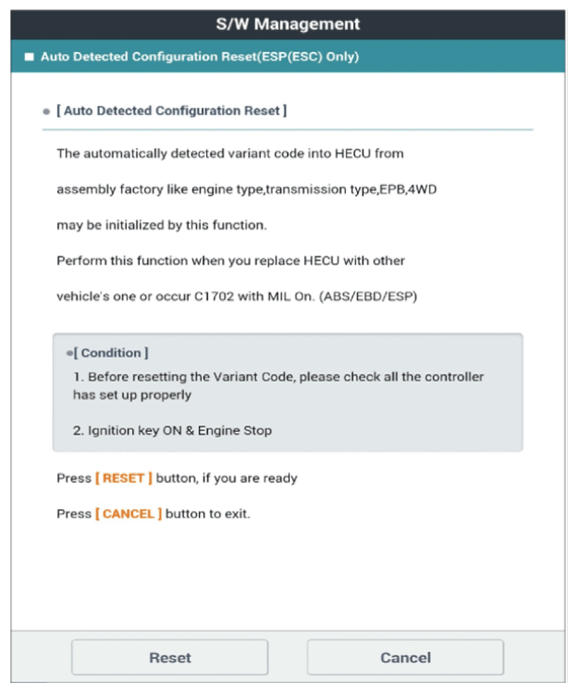

G13458354Courtesy of KIA MOTORS AMERICA, INC.

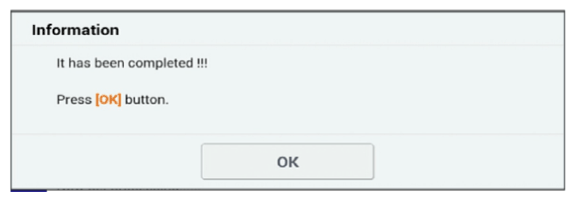

G13458355Courtesy of KIA MOTORS AMERICA, INC.
