Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the left luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

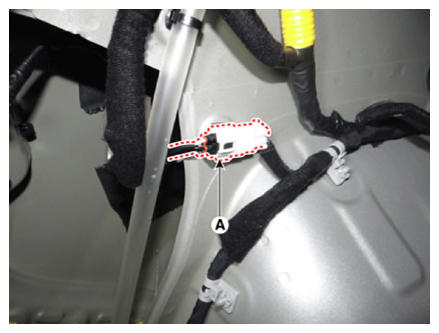

  3. Disconnect the fuel filler door release actuator connector (A).
    G13438479Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the fuel filler door housing.

    (Refer to " REPLACEMENT  ")

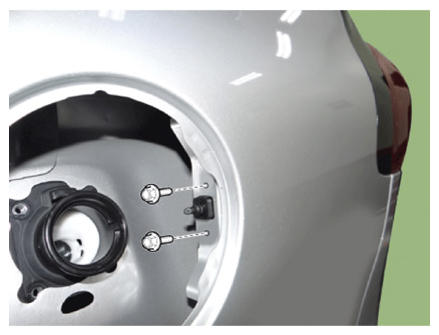

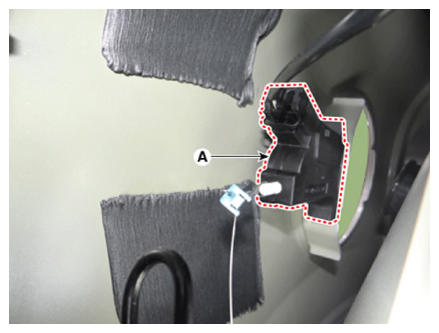

  5. Remove the fuel filler door release actuator (A) after loosening the mounting bolts.
G13438480Courtesy of KIA MOTORS AMERICA, INC.
G13438481Courtesy of KIA MOTORS AMERICA, INC.
