Repair Procedures: Inspection

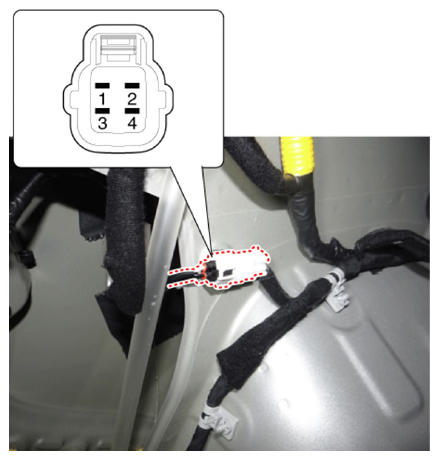

  1. Check for continuity between terminals No. 2 and No. 4. If there is no continuity, replace the fuel filler door release actuator.
G13438482Courtesy of KIA MOTORS AMERICA, INC.
G13438483Courtesy of KIA MOTORS AMERICA, INC.
