Home >> Kia >> 2021 >> Niro LX >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Fuel Filler Door - Inspection (HEV) >> Fuel Filler Door Open Switch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

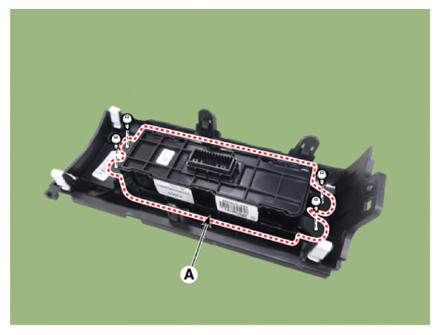

  3. Remove the crash pad lower switch (A) after loosening the mounting screws.
G13438485Courtesy of KIA MOTORS AMERICA, INC.
