Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

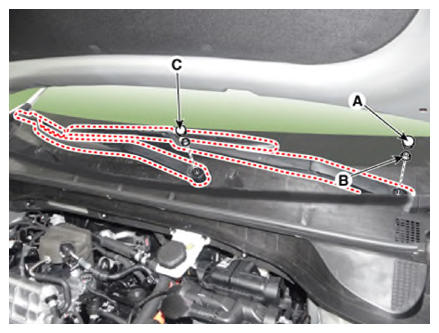

Remove the cap (A) and the nuts (B), and then remove the wiper arm (C).
Tightening torque:

22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

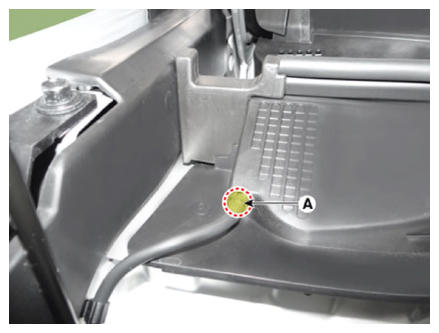

Disconnect the nozzle hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

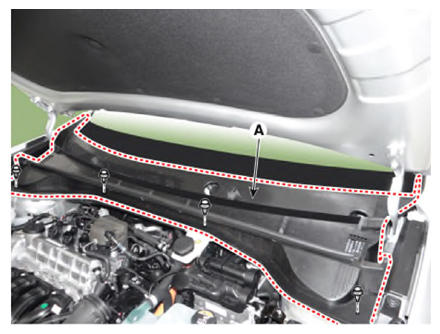

Detach the clips, then remove the cowl top cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
