Instrument Cluster

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

  3. Remove the instrument cluster (A) after loosening the mounting screws.
    G13438558Courtesy of KIA MOTORS AMERICA, INC.

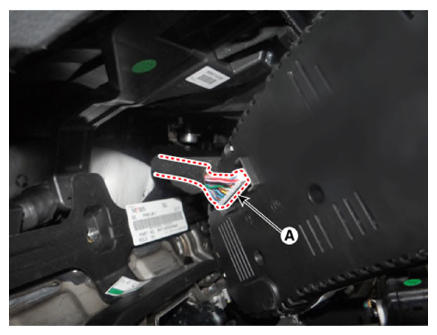

  4. Disconnect the connector (A) from the instrument cluster.
G13438559Courtesy of KIA MOTORS AMERICA, INC.
