Steering Column Shroud Lower Panel

  1. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

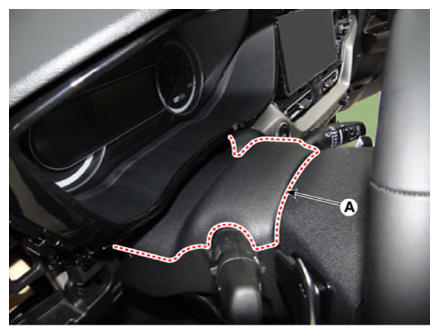

  2. Using a remover, slightly separate the steering column shroud upper panel (A).
    G13437898Courtesy of KIA MOTORS AMERICA, INC.

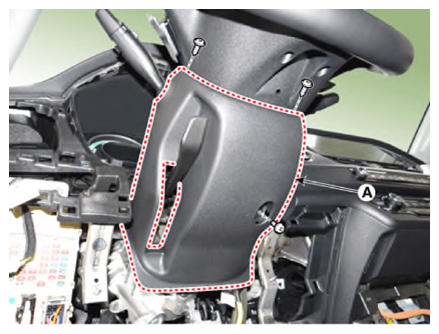

  3. Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
    G13437899Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.

    Information

    Replace any damaged clips (or pin-type retainers).
