Component Inspection

Inspection Condition	Inspection Procedure	Reference

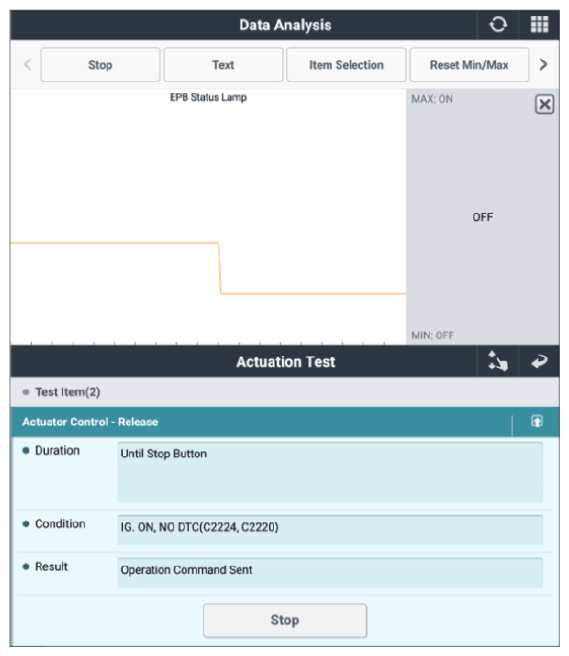

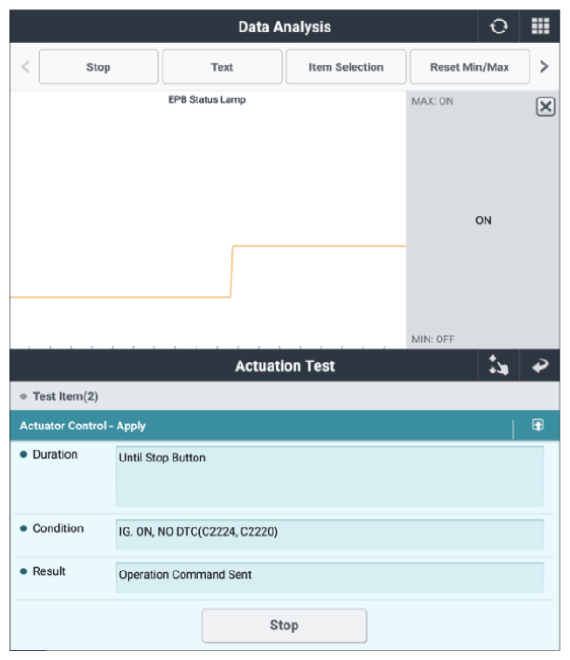

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" and monitor parameter in "Current Data" with KDS.	Fig.1 to 2

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors and DTC still occurs, replace the EPB ECU and go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
