Connector And Terminal Function

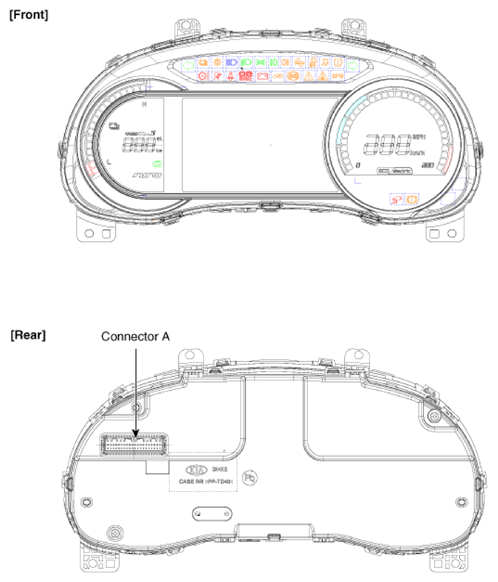

CONNECTOR PIN INFORMATION
| No. | Description |
|---|---|
| 1 | Ground (Signal 3) |
| 2 | Illumination (-) |
| 3 | Rheostat switch (Down) |
| 4 | Rheostat switch (Up) |
| 5 | - |
| 6 | - |
| 7 | Washer level low indicator (Input) |
| 8 | - |
| 9 | - |
| 10 | Drive mode switch (Input) |
| 11 | Detent |
| 12 | - |
| 13 | - |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | Immobilizer (Input) |
| 21 | Trip switch (-) (Input) |
| 22 | Trip switch 1 (+) (Input) |
| 23 | Trip switch 2 (+) (Input) |
| 24 | - |
| 25 | - |
| 26 | - |
| 27 | - |
| 28 | - |
| 29 | M-CAN (Low) |
| 30 | M-CAN (High) |
| 31 | - |
| 32 | C-CAN (Low) |
| 33 | C-CAN (High) |
| 34 | Cluster speaker (+) (Output) |
| 35 | Cluster speaker (-) (Output) |
| 36 | - |
| 37 | Ground (Signal 1) |
| 18 | Vehicle speed (Output) |
| 19 | Airbag (+) (Input) |
| 20 | Tail lamp (Input) |
| 38 | IGN 3 |
| 39 | IGN 1 |
| 40 | Battery (+) |
