Instrument Cluster

CAUTION: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

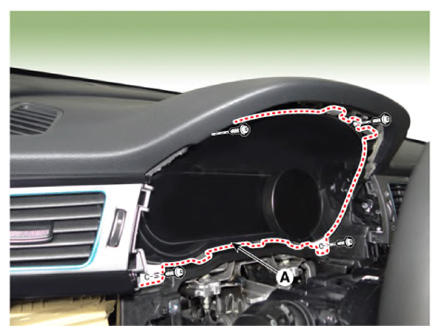

  3. Remove the instrument cluster (A) after loosening the mounting screws.
    G13375304Courtesy of KIA MOTORS AMERICA, INC.

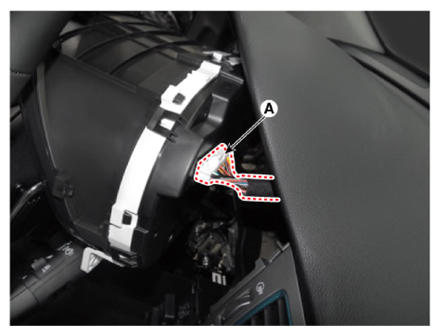

  4. Disconnect the instrument cluster connector (A).
    G13375305Courtesy of KIA MOTORS AMERICA, INC.
