Instrument Cluster Speaker
CAUTION:
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Disconnect the negative battery terminal.
- Remove the crash pad center lower panel.
(Refer to Body - "CRASH PAD CENTER PANEL ")

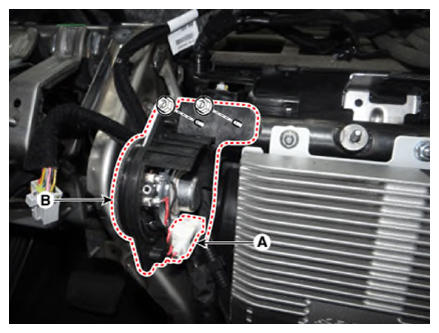

- Disconnect the instrument cluster speaker connector (A).
- Remove the instrument cluster speaker (B) after loosening the mounting nuts.
