Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.

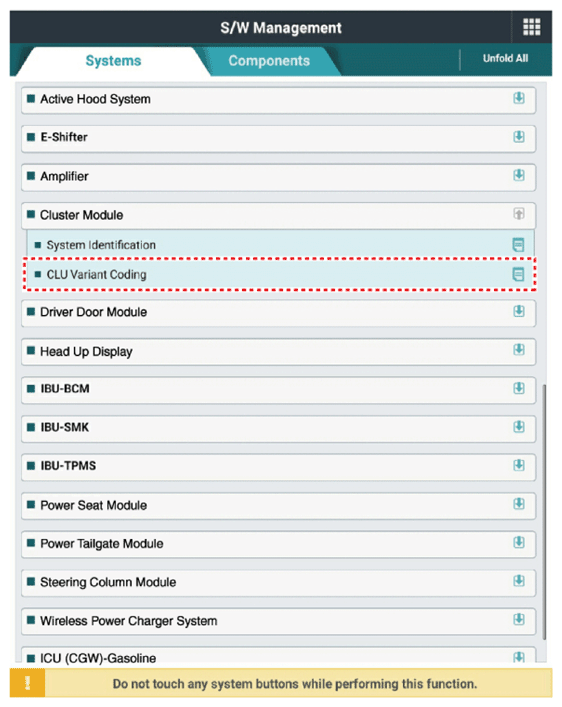

    G13375307Courtesy of KIA MOTORS AMERICA, INC.

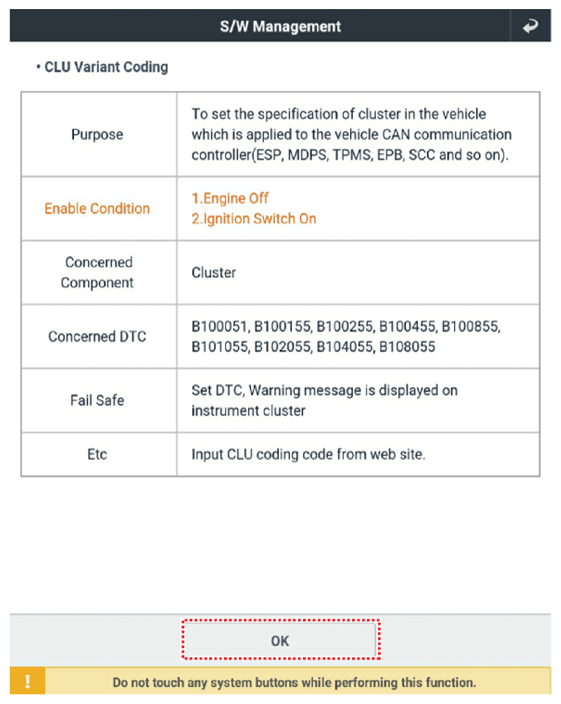

    G13375308Courtesy of KIA MOTORS AMERICA, INC.

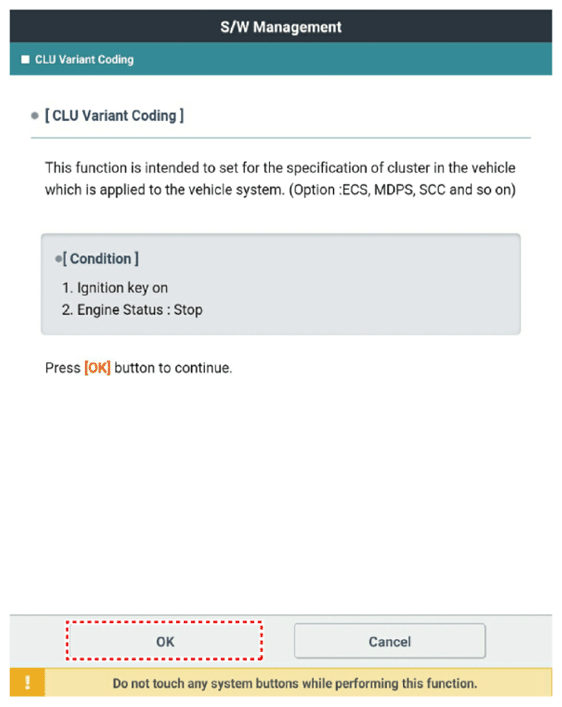

    G13375309Courtesy of KIA MOTORS AMERICA, INC.
