Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the EGR cooler.
(Refer to " Removal and installation ")

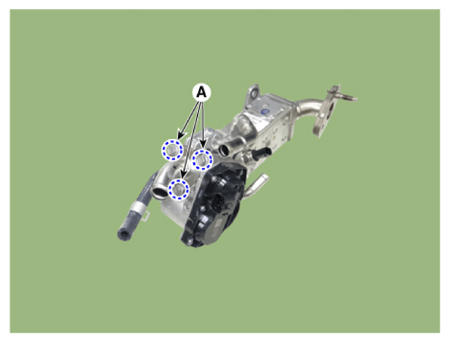

- Remove the electric EGR control valve after removing the mounting bolts (A).
Tightening torque:
18.7-23.5 N.m (1.9-2.4 kgf.m, 13.8-17.3 lb.ft)
