Circuit Inspection

G13808517Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 HUD connector 6, 12 (power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect the battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 HUD connector 1, 7 (ground) Chassis ground - Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".

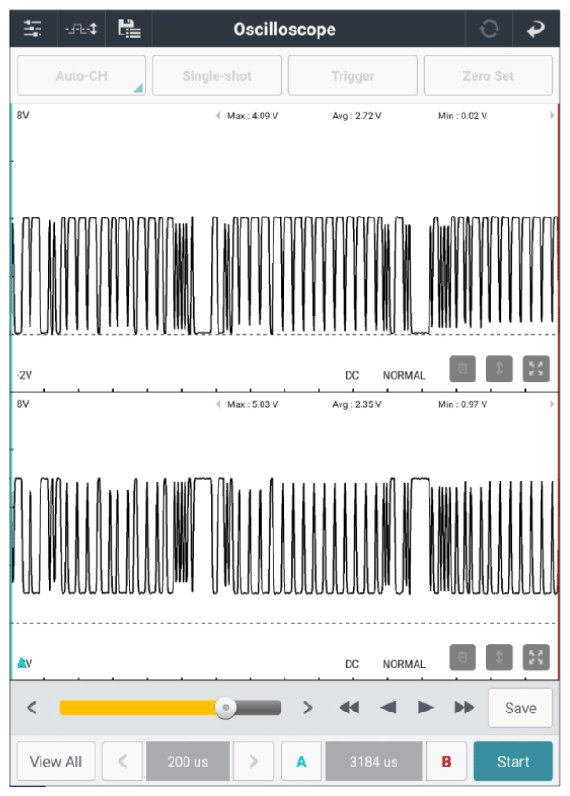

 HUD connector 4 (M-CAN high) Chassis ground - Fig.1
HUD connector 5 (M-CAN low) Chassis ground -
G13808518Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
