Repair Procedures: Installation

  1. Install in the reverse of the removal.

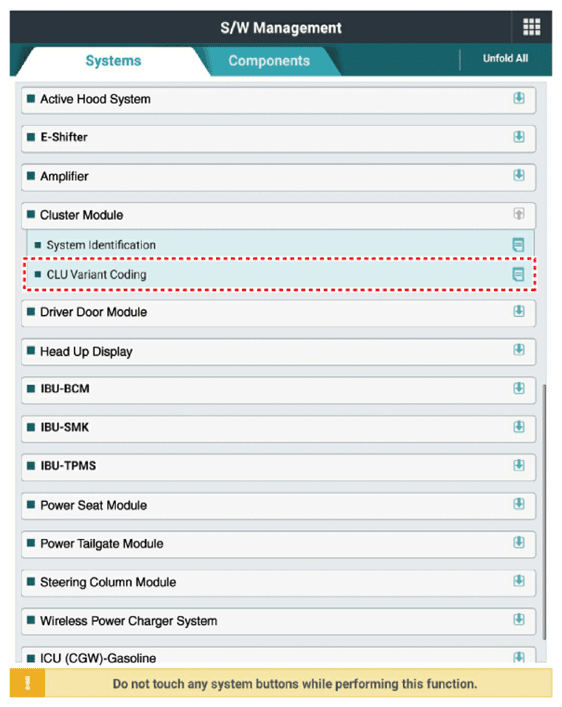

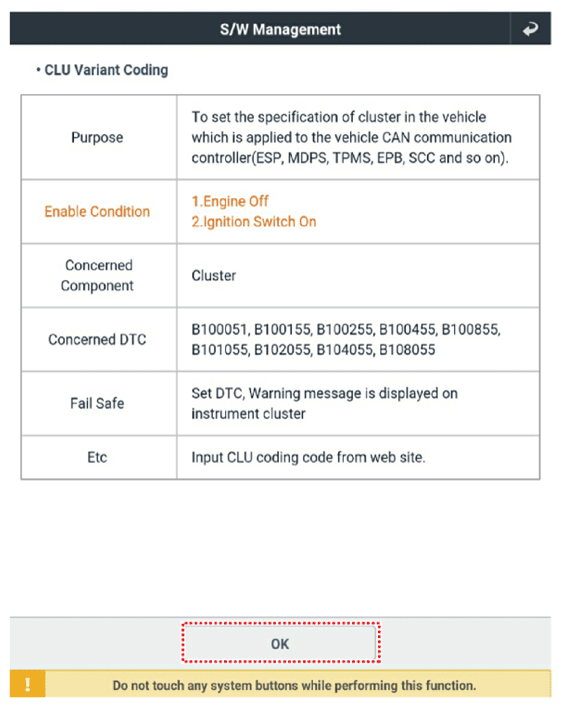

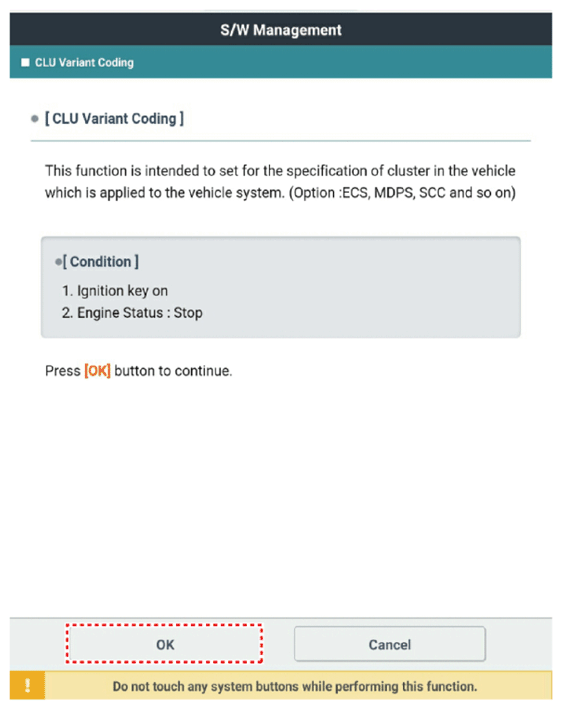

  2. After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.
    G13836010Courtesy of KIA MOTORS AMERICA, INC.
    G13836011Courtesy of KIA MOTORS AMERICA, INC.
    G13836012Courtesy of KIA MOTORS AMERICA, INC.
